IntrinsicCalibrator ​

SUMMARY

IntrinsicCalibrator recovers a single camera's intrinsic matrix and distortion coefficients from a stack of calibration-board images. One class dispatches on whichever target you pass it, no separate class per board type.

The Skill ​

python
from telekinesis.axon import IntrinsicCalibrator, IntrinsicOptions

The Code ​

python
from telekinesis.axon import IntrinsicCalibrator, IntrinsicOptions
from telekinesis.axon.targets import CharucoTarget

target = CharucoTarget(squares_x=6, squares_y=9, square_length=0.012, marker_length=0.009)

options = IntrinsicOptions()
options.per_view_error_threshold = 0.8

calibrator = IntrinsicCalibrator(target, options)
result = calibrator.calibrate(images)

result.ok                     # bool
result.intrinsic_matrix       # (3, 3) np.ndarray
result.distortion_coefficients
result.reprojection_error
result.successful_indices
result.low_view_error_indices

Background ​

The pinhole model ​

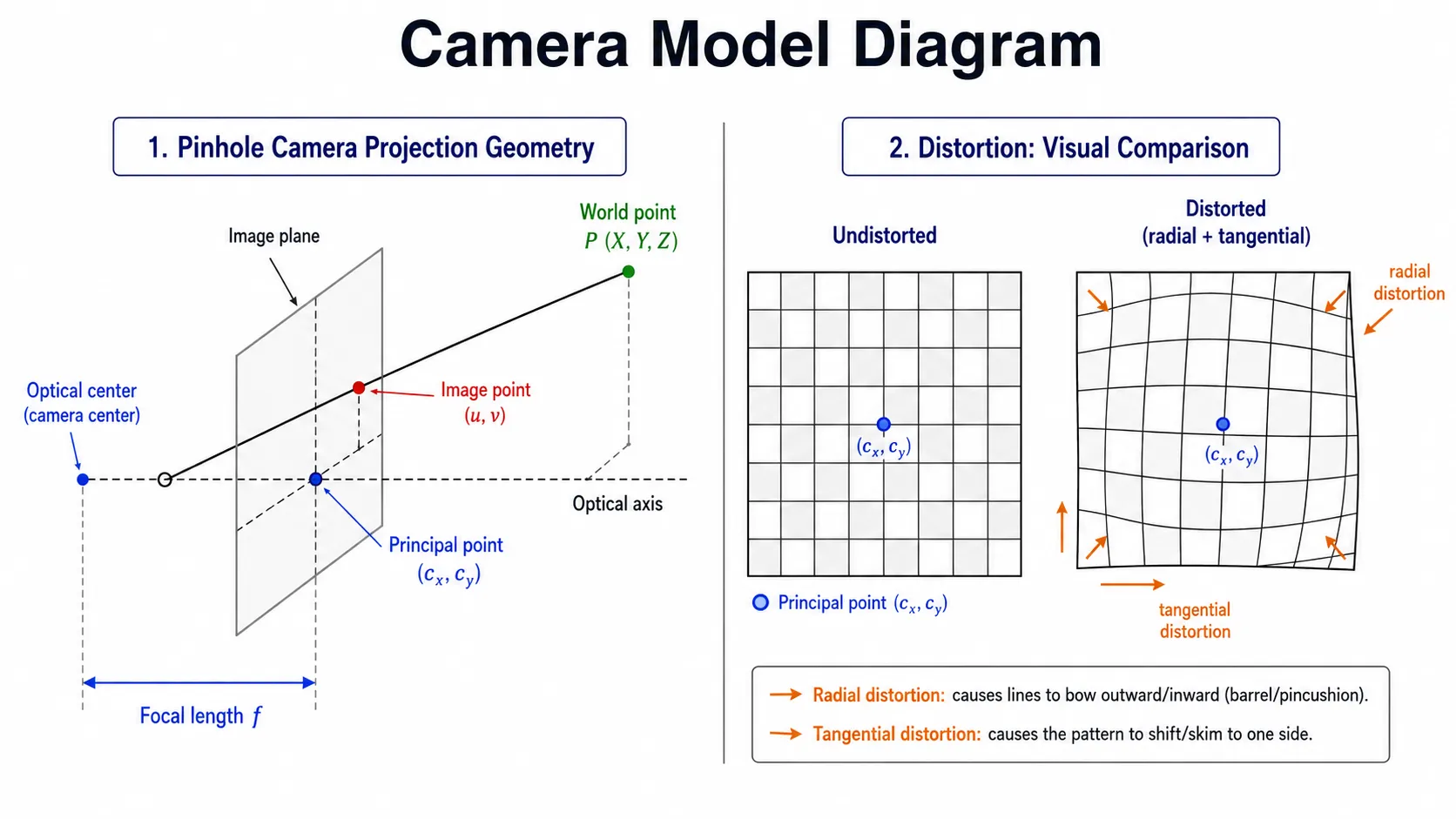

Pinhole camera model: image plane, focal length, principal point, and an undistorted vs. distorted image comparison

IntrinsicCalibrator fits a pinhole camera model: a 3x3 intrinsic matrix K (focal lengths fx, fy and principal point cx, cy) plus a set of radial and tangential distortion coefficients that describe how the real lens deviates from an ideal pinhole. Given a set of images of a target with known geometry, cv::calibrateCamera solves for K, the distortion coefficients, and a per-view extrinsic pose (rvec, tvec) jointly, by minimizing the reprojection error: the pixel distance between each detected corner and where the fitted model predicts that corner should land.

Reading the fit ​

reprojection_error (the RMS pixel error over every point of the views used in the final fit) and per_view_errors (one RMS value per view) are the two numbers that tell you how well the model fits. Views whose own error exceeds per_view_error_threshold are dropped automatically and the model is refit on the rest, see How Views Are Selected and Best Practices.

Initialization ​

python
IntrinsicCalibrator(target, options=IntrinsicOptions())
ParameterTypeDescription
targetChessboardTarget | CharucoTarget | ArucoTarget | ZividTargetCalibration target, see All Supported Targets.
optionsIntrinsicOptionsSolver tunables, see IntrinsicOptions.
SkillDescription
CalibrateDetect the target in every image and run cv::calibrateCamera.
Find CornersDetect the target in a set of images with no calibration solve.

See also IntrinsicCalibrator State to read back the target, options, and detections of the last calibrate() call.

Best Practices ​

Collecting a good dataset ​

Do thisWhy
Capture 15-20+ viewsFewer under-constrains the distortion coefficients; beyond ~20-25 good views, additional frames give diminishing returns unless you're specifically trying to cover more of the frame
Cover the whole frame, not just the centerDistortion is smallest near the principal point and largest toward the edges and corners; a board that only ever appears centered fits K reasonably but leaves distortion poorly constrained
Vary tilt, not just positionA set of fronto-parallel views (board always facing the camera) is close to degenerate for separating focal length from distance
Vary distance too, within your operating rangeCalibrating at one working distance doesn't generalize to another

Common pitfalls ​

Watch forWhy
Motion blur and inconsistent exposureA blurred or poorly-exposed corner detection is worse than a missing one; views above per_view_error_threshold are dropped and the intrinsics refit without them, and low_view_error_indices tells you which views were kept
Many views dropped by the per-view filterOne or two outliers usually mean bad detections on those frames (motion blur, glare, partial occlusion). If most views exceed the threshold, the problem is systemic (focus, a bowed board, a wrong target definition); fix it rather than raising the threshold. With fewer than 3 passing views the calibration fails
A wrong square_size / square_lengthFocal length and distortion do not depend on board scale, so the reprojection error looks fine, but every pose estimated later is scaled. Measure the printed board
