TF: Coordinate Transform Skills

SUMMARY

TF is the coordinate frame module in the Telekinesis SDK. It provides a TransformTree for building and querying hierarchies of named coordinate frames, and a tfutils collection of pose and rotation conversion functions.

Install telekinesis-tf

Create an API key and install telekinesis-ai. telekinesis-tf ships as one of its dependencies, so no separate install is needed.

Open installation →

Go to the Quickstart

Pick a starter and run your first Skill end-to-end, all visualized in Rerun.

Open quickstart →

Quickstart

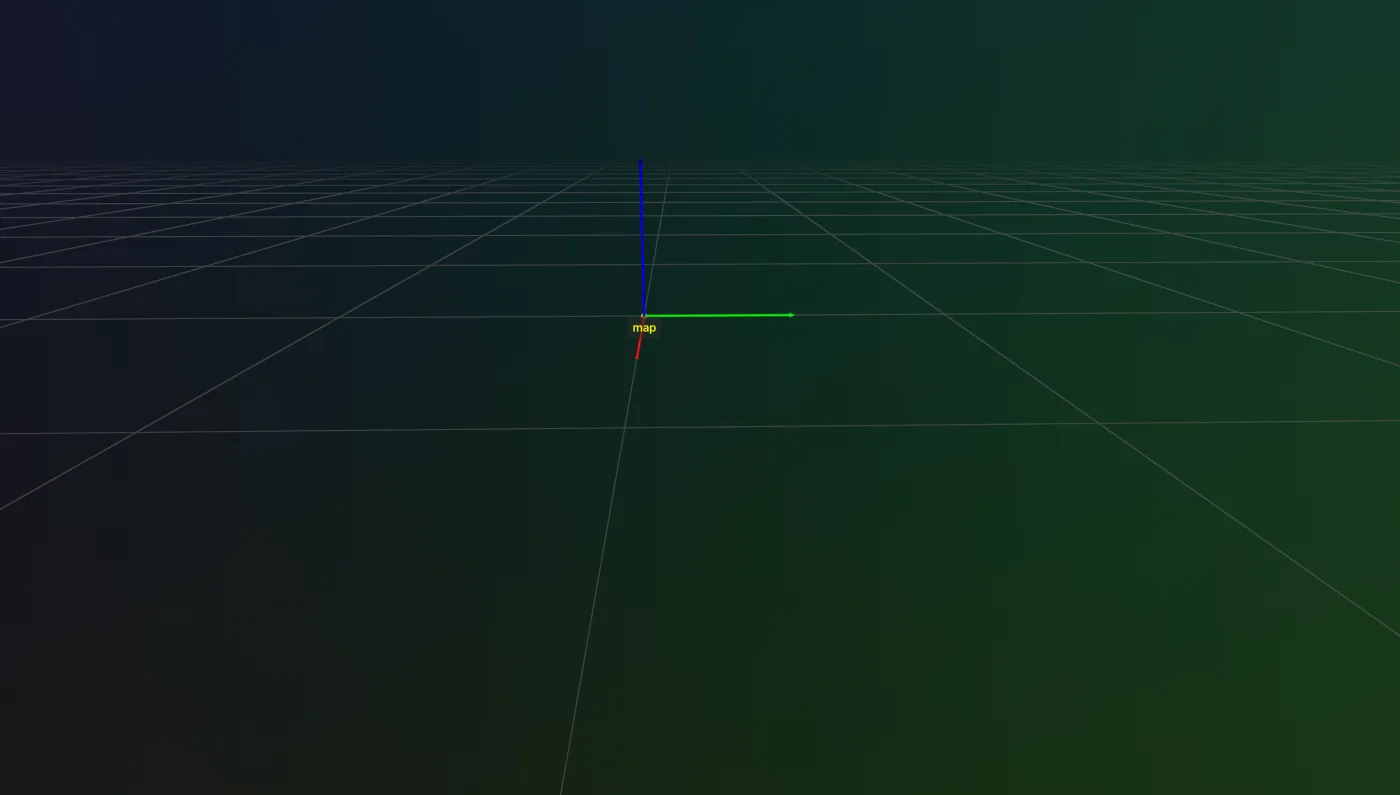

1. Create the tree and visualize

from telekinesis.tf import tftree

tree = tftree.TransformTree(root_name="map")
tree.visualize_rerun(axis_len=0.5)

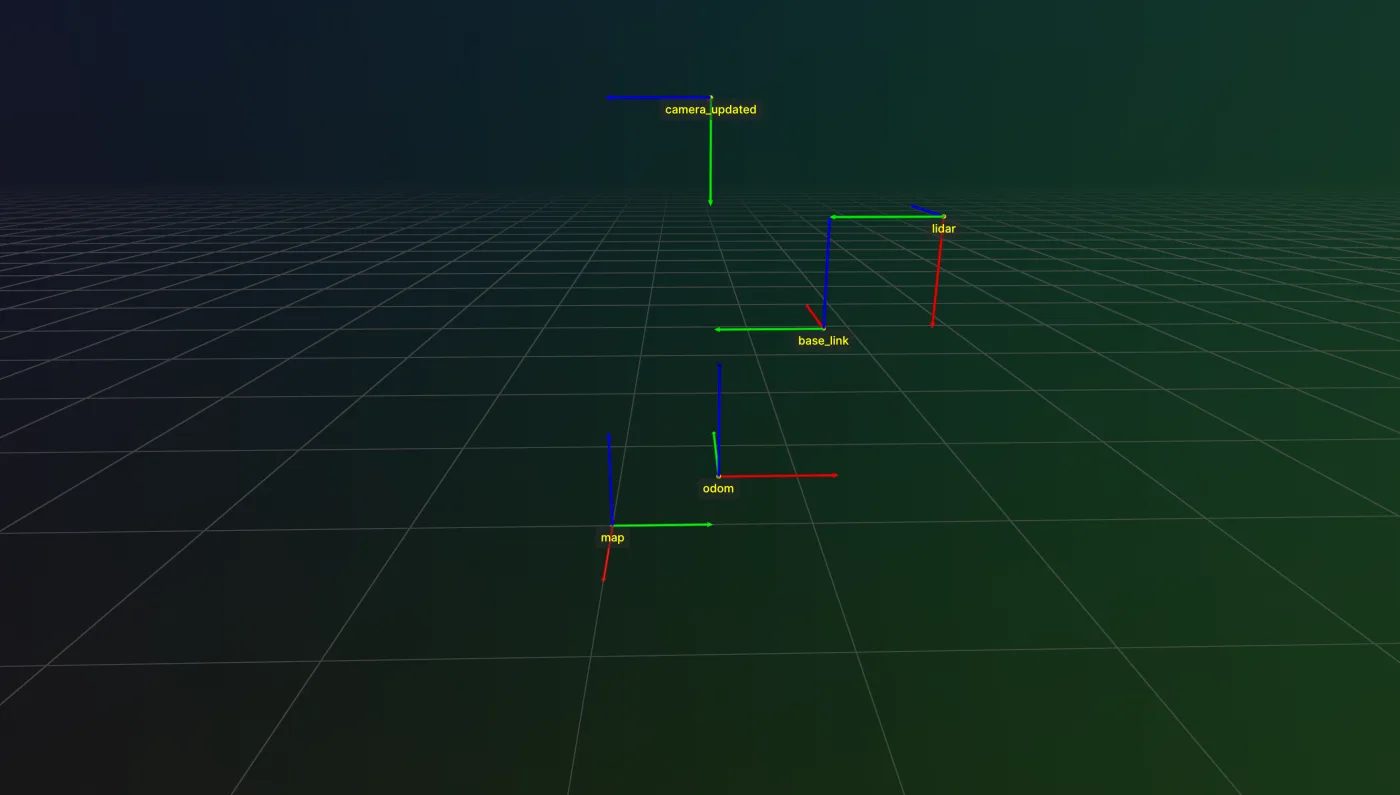

2. Add and update transforms, and visualize

# Add transform: map -> odom
odom_pose = [0.5, 0.5, 0.5, 0, 0, 90]
tree.add(source_name="map", target_name="odom", transform=odom_pose, rot_type="deg")

# Add transform: odom -> base_link
base_link_pose = [0.5, 0.5, 0.5, 0, 0, 90]
tree.add(source_name="odom", target_name="base_link", transform=base_link_pose, rot_type="deg")

# Add transform: base_link -> camera
camera_pose = [0.5, 0.5, 0.5, 0, 0, 0]
tree.add(source_name="base_link", target_name="camera", transform=camera_pose, rot_type="deg")

# Rename the camera frame
tree.update_node_name(old_name="camera", new_name="camera_updated")

# Add transform: base_link -> lidar
lidar_pose = [0, -0.5, 0.5, 0, 90, 0]
tree.add(source_name="base_link", target_name="lidar", transform=lidar_pose, rot_type="deg")

# Update transform: base_link -> camera_updated
camera_pose_updated = [0.5, 0.5, 1, -1.5707963, 0, 0]
tree.update(source_name="camera_updated", transform=camera_pose_updated, rot_type="rad")

tree.visualize_rerun(axis_len=0.5)

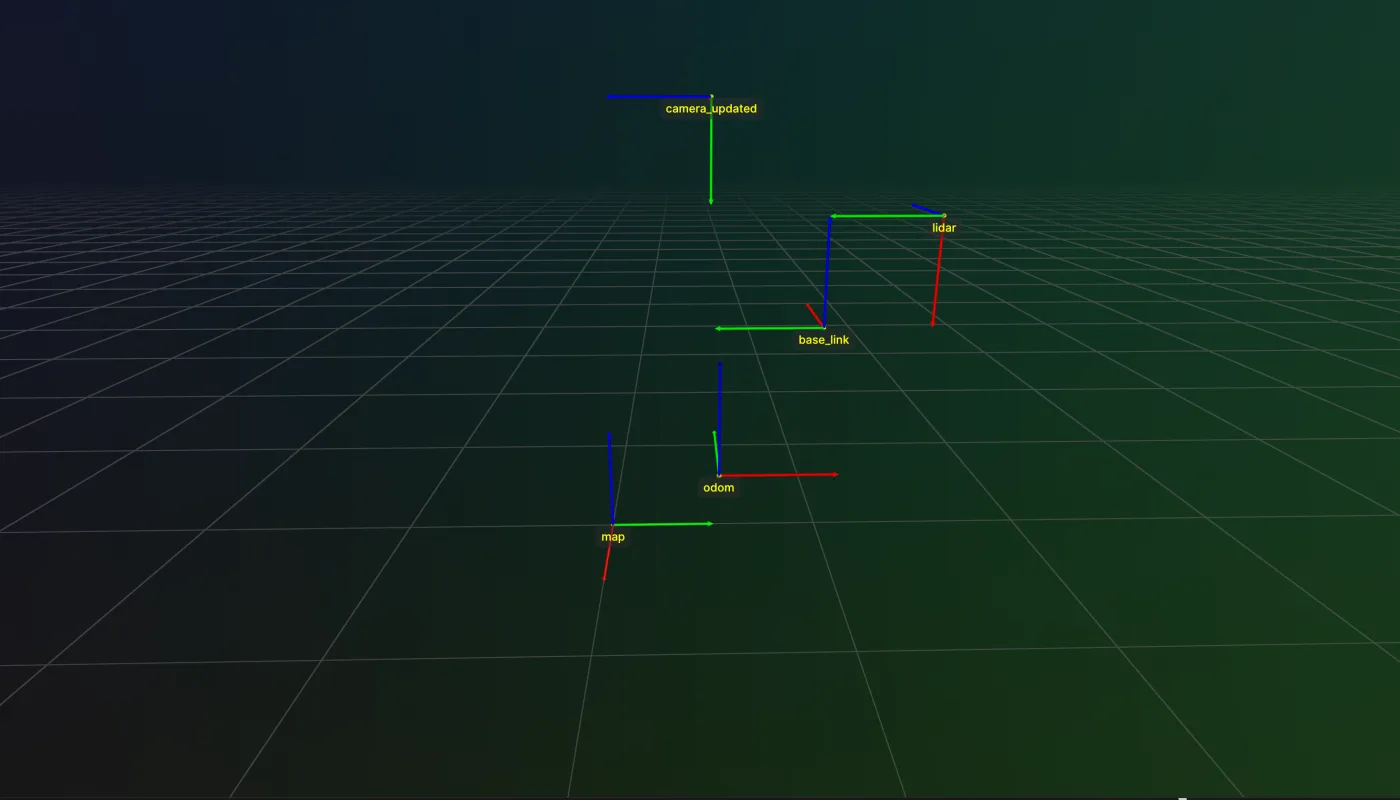

3. Remove a transform and visualize

tree.delete(node_name="lidar")
tree.visualize_rerun(axis_len=0.5)

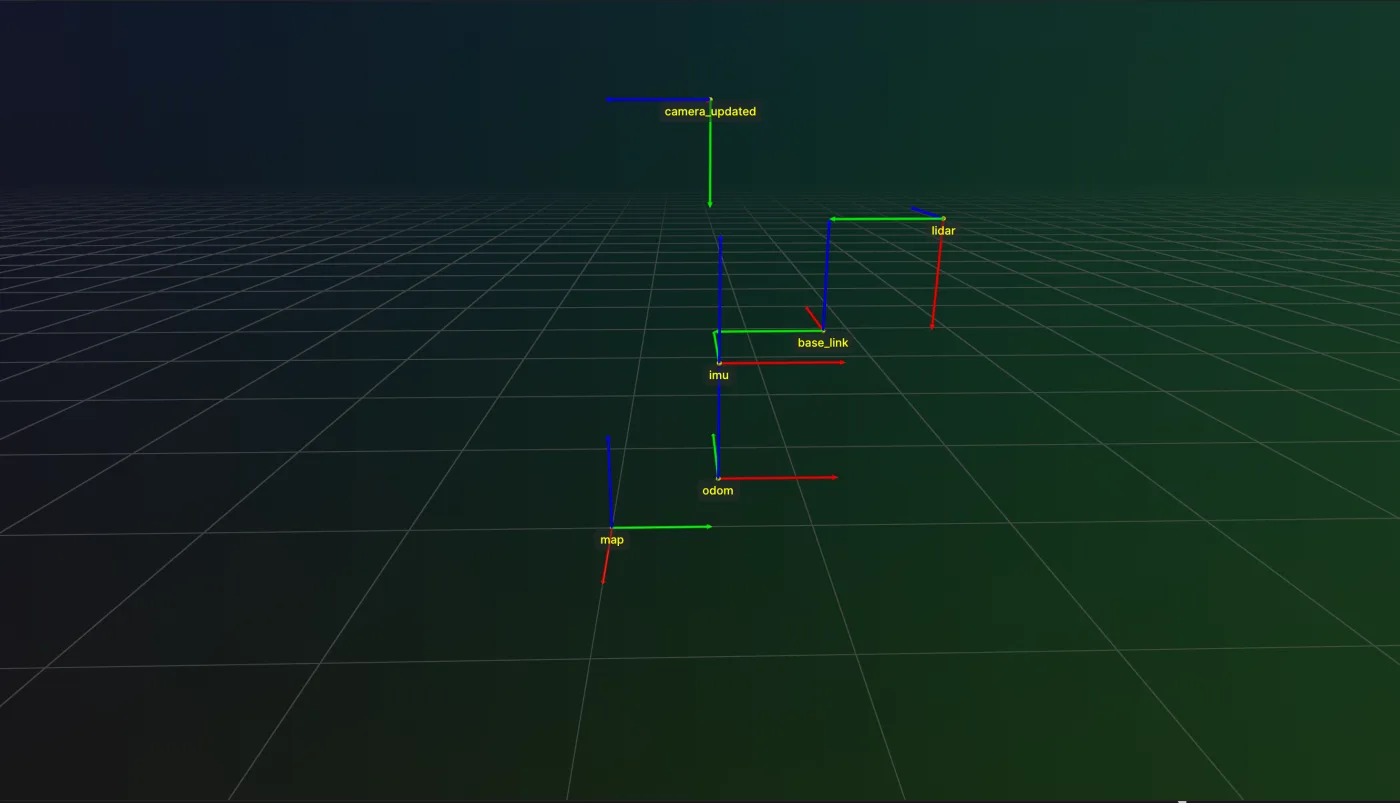

4. Add a frame, print the hierarchy, change its parent, and visualize

# Add transform: odom -> imu
imu_pose = [0, 0, 0.5, 0, 0, 0]
tree.add(source_name="odom", target_name="imu", transform=imu_pose, rot_type="deg")

tree.print_hierarchy()

# Re-parent imu under base_link, keeping its pose in the world
tree.change_parent(node_name="imu", new_parent_name="base_link")

tree.print_hierarchy()

frames = tree.get_all_frames(reference_node_name="map")
tree_copy = tree.copy(prefix="copy_")

tree.visualize_rerun(axis_len=0.5)

When to Use TF?

Use TF whenever an application needs to reason about named coordinate frames and the transforms between them, such as:

• Tracking the relationship between a robot base, its tool center point, and a camera
• Looking up the transform between any two frames in a scene, regardless of how they are connected
• Converting poses between degrees, radians, quaternions, and rotation vectors
• Visualizing a frame hierarchy in Rerun while a robot or scene changes over time

What Does TF Provide?

TF includes two groups of Skills:

• TransformTree - a tree of named coordinate frames with lookup, mutation, and visualization
• tfutils - stateless functions for converting poses and rotations between representations, computing pose error, and plotting a frame in Rerun

Overview of Skills

Transform Tree

SDK Call	Description
TransformTree	Construct a tree with a root frame.
add	Add a new frame under an existing frame.
add_tree	Graft another tree in as a subtree.
update	Update the transform of an existing frame.
delete	Remove a frame from the tree.
update_node_name	Rename a frame.
find_nodes	Look up nodes in the tree by name.
lookup_transform	Get the transform between any two frames.
copy	Deep copy the tree with a renamed root.
get_root_name	Get the name of the root frame.
set_root_name	Set the name of the root frame.
get_parent	Get the parent of a frame.
change_parent	Move a frame under a different parent.
get_all_frames	Get every frame's pose relative to a reference.
visualize_rerun	Log the whole tree to Rerun.
print_hierarchy	Log the parent/child structure of the tree.

Transform Utility

SDK Call	Description
pose_to_transformation_matrix	Convert a pose to a 4x4 transformation matrix.
transformation_matrix_to_pose	Convert a 4x4 transformation matrix to a pose.
invert_transformation_matrix	Invert a 4x4 transformation matrix.
convert_rotation_format	Convert a rotation between deg, rad, quat, and rotvec.
convert_pose_format	Convert a pose between deg, rad, quat, and rotvec.
convert_quaternion_to_scalar_first	Convert a quaternion from xyzw to wxyz.
convert_quaternion_to_scalar_last	Convert a quaternion from wxyz to xyzw.
compute_transformation_matrix_error	Compute the SE(3) error between two transforms.
plot_transformation_frame	Log a single transform's frame to Rerun.
sort_poses	Sort a list of poses by position.
