Filter Point Cloud Using Viewpoint Visibility

SUMMARY

Filter Point Cloud Using Viewpoint Visibility keeps only the points that would actually be visible from a given camera position.

It removes points that are either occluded — blocked from viewpoint by other points — or simply too far away, beyond visibility_radius. This is useful for simulating what a sensor at a given position would actually see, e.g. to compare a rendered or synthetic view of a mesh against a real scan, or to discard points a robot's camera couldn't have actually observed from where it was positioned.

Use this Skill when you want to restrict a point cloud to what a specific camera or sensor position could actually observe, accounting for both occlusion and range.

The Skill

from telekinesis import vitreous

filtered_point_cloud = vitreous.filter_point_cloud_using_viewpoint_visibility(
    point_cloud=point_cloud,
    viewpoint=[100, -500, 250.0],
    visibility_radius=100000.0,
)

API Reference

Full parameter and return type documentation for filter_point_cloud_using_viewpoint_visibility.

View Reference →

Data Transfer Notice

There is no longer a fixed limit of 1 million points per request. However, very large datasets may result in slower data transfer and processing times. We are continuously optimizing performance as part of our beta program, with ongoing improvements to enhance speed and reliability.

Example

Note: The viewpoint must be defined in the same coordinate frame as the point cloud. If the cloud is centered, adjust the viewpoint accordingly. The visibility_radius should be larger than the scene's bounds (same units as the point cloud).

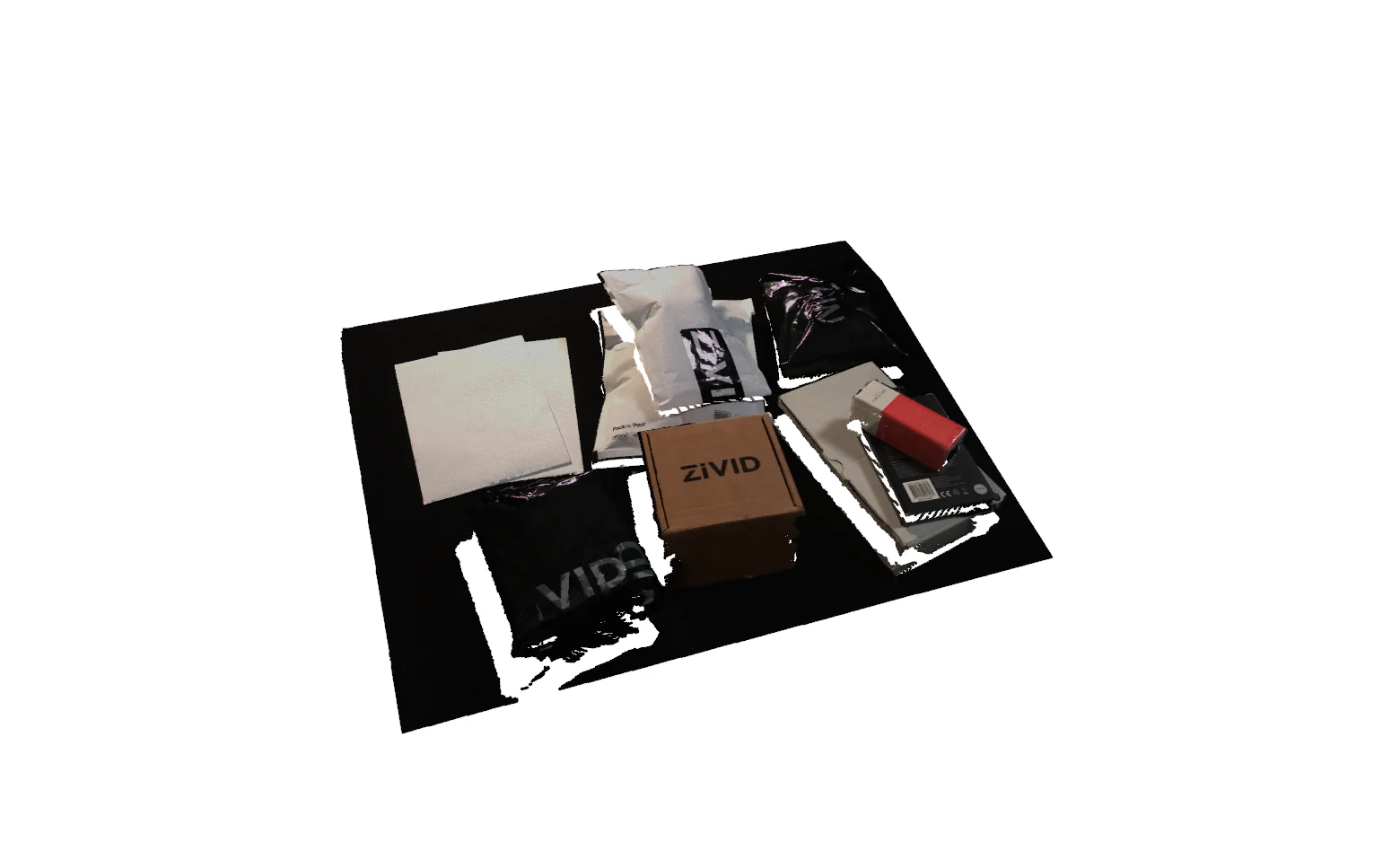

Input Point Cloud (Overview)

The raw, centered point cloud visualized from a zoomed-out viewpoint. The red marker indicates the camera position used for visibility filtering.

Filtered Result (Same Perspective as #1)

The resulting point cloud after removing hidden or occluded points. The camera perspective matches the overview in the first image, allowing a direct before/after comparison.

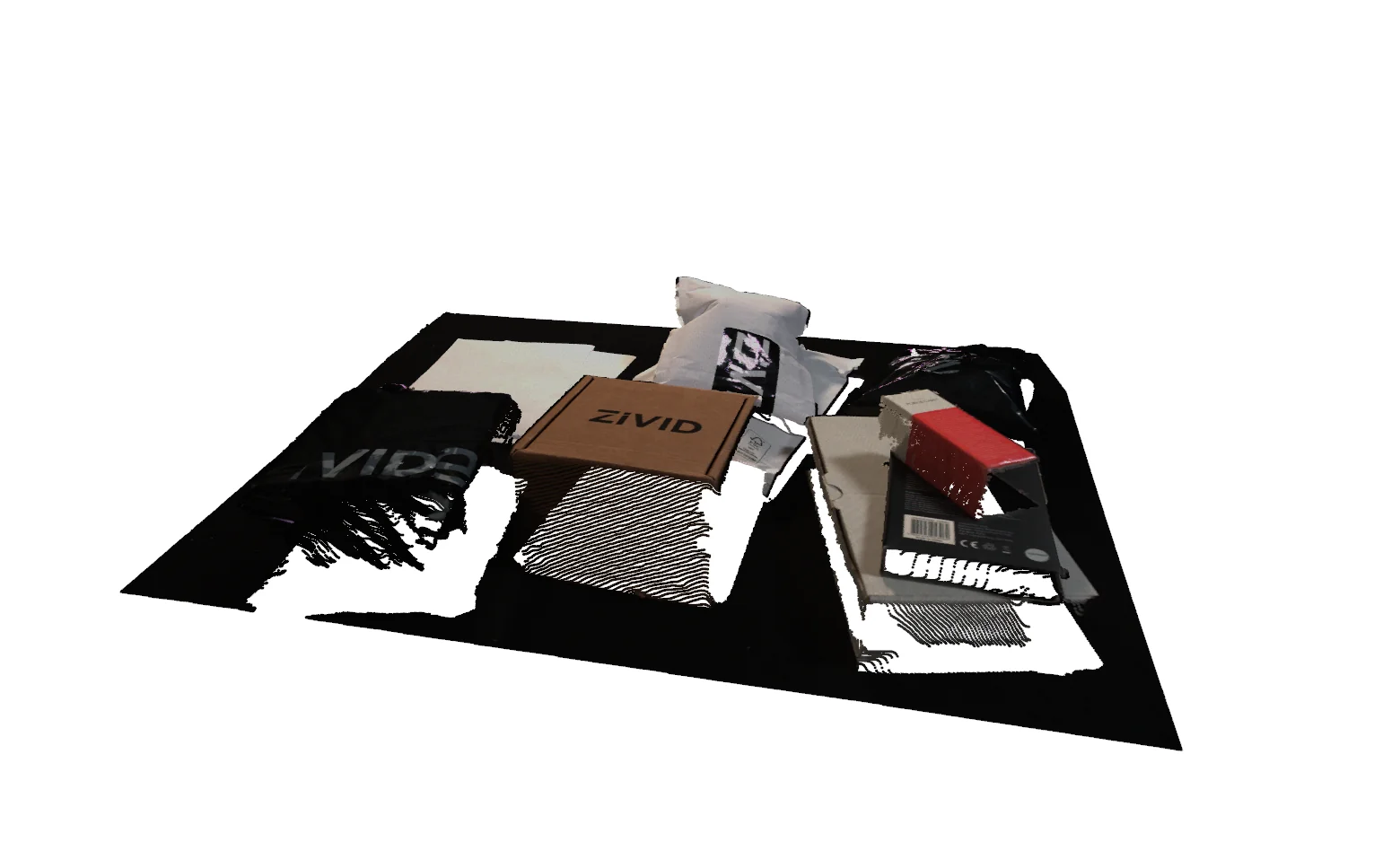

Camera View (What the Filter 'Sees')

The point cloud rendered from the exact filtering viewpoint. Only points directly visible from this position will be retained. All occluded points are removed by the algorithm.

The Code

"""
Demonstrates filtering points based on visibility from a camera viewpoint.
"""

from loguru import logger
import rerun as rr

from telekinesis import vitreous, datatypes


def filter_point_cloud_using_viewpoint_visibility_example():
    """
    Filters points based on visibility from a camera viewpoint.

    Removes points that are occluded or outside the visibility range from
    a specified camera position.
    """
    # ===================== Load Data ==========================================
    point_cloud_url = "https://assets.telekinesis.ai/examples/v1/point_clouds/zivid_parcels_04_preprocessed.ply"
    point_cloud = datatypes.PointCloud.from_url(url=point_cloud_url, use_cache=True)

    # ===================== Run Skill ==========================================
    filtered_point_cloud = vitreous.filter_point_cloud_using_viewpoint_visibility(
        viewpoint=[100, -500, 250.0],
        visibility_radius=100000.0,
        point_cloud=point_cloud,
    )

    # ===================== Log ================================================
    logger.success(f"Filtered {point_cloud} using viewpoint visibility")
    logger.success(f"Results: {filtered_point_cloud}")
    logger.info(
        f"Filtered point cloud positions shape: {filtered_point_cloud.positions.shape}"
    )
    logger.info(
        f"Filtered point cloud has normals shape: "
        f"{filtered_point_cloud.normals.shape if filtered_point_cloud.has_normals else None}"
    )
    logger.info(
        f"Filtered point cloud has colors shape: "
        f"{filtered_point_cloud.colors.shape if filtered_point_cloud.has_colors else None}"
    )

    # ===================== Visualization  (Optional) ===========================
    rr.init("filter_point_cloud_using_viewpoint_visibility_example", spawn=True)
    datatypes.visualize(point_cloud, entity_path="/1-input_point_cloud")
    datatypes.visualize(filtered_point_cloud, entity_path="/2-filtered_point_cloud")


if __name__ == "__main__":
    filter_point_cloud_using_viewpoint_visibility_example()

Runnable examples are available in the Telekinesis examples repository.

Follow the README in that repository to set up the environment, run this specific example with:

cd telekinesis-examples
python examples/point_cloud/filter_point_cloud_using_viewpoint_visibility.py

Parameter Configuration

Key	Type	Default	Description
point_cloud	datatypes.PointCloud	required	The point cloud to filter
viewpoint	datatypes.Vector3D | np.ndarray | list[float]	required	The 3D position [x, y, z], in meters, of the camera/viewpoint in the point cloud's coordinate frame
visibility_radius	datatypes.Float | float | int	required	The maximum distance from viewpoint, in meters, at which a point is still considered visible; points beyond it are removed regardless of occlusion

Returns

Type	Description
datatypes.PointCloud	A point cloud containing only the points visible from viewpoint. Use .positions for the surviving (N, 3) position array and len(...) for the point count.

Raises

Exception	Condition
TypeError	A parameter's value does not match its expected type (see the Parameter Configuration table above), or (for a list viewpoint) it contains a non-numeric element
ValueError	viewpoint does not have exactly 3 elements
ConfigurationError	The TELEKINESIS_API_KEY environment variable is not set
SerializationError	The request input failed to serialize, or the response failed to deserialize
RequestTimeoutError	The request to the Vitreous service timed out
TransportError	A network failure occurred before a response was received
ClientError	The Vitreous service rejected the request due to invalid input, invalid data, or another unexpected 4xx response
AuthenticationError	The API key was rejected as invalid or expired
AuthenticationServiceError	The authentication service was unavailable
ServerError	The Vitreous service returned a 5xx or otherwise unexpected error response

How to Tune the Parameters

The filter_point_cloud_using_viewpoint_visibility Skill exposes two parameters that together define the position and range of the simulated sensor.

viewpoint

• Controls: The 3D position [x, y, z] that points are tested for visibility from.
• Units: Meters, in the point cloud's coordinate frame
• Default: required — no default
• Set it to the real camera or sensor position at the time the point cloud was captured
• If the point cloud has been re-centered or transformed since capture, the viewpoint must be transformed to match, or visibility results will be wrong

visibility_radius

• Controls: The maximum distance from viewpoint at which a point can still count as visible; points beyond it are removed regardless of occlusion.
• Units: Meters
• Default: required — no default
• Increase → expands the visible region, keeping more distant points
• Decrease → restricts visibility to a smaller region around the viewpoint
• Typical range: 0.1–100 meters, depending on scene scale — use 0.1–1.0 for close-range scanning, 1.0–10.0 for room-scale, 10.0–100.0 for large scenes

TIP

Set viewpoint to the actual sensor position at capture time, and set visibility_radius comfortably larger than the farthest point you want to keep in the scene — an undersized radius silently drops valid points regardless of whether they were actually occluded.

Where to Use the Skill

Common pipelines include:

• Sensor simulation – predicting what a camera at a candidate position would actually capture, before moving a real sensor there
• Occlusion-aware perception – limiting a robot's model of the world to points its own camera could actually have observed
• Synthetic-vs-real comparison – filtering a rendered mesh's point cloud down to the same visible set as a corresponding real scan
• Next-best-view planning – evaluating candidate viewpoints by how much of a scene each one would actually reveal

Alternative Skills

There is no other Vitreous skill that performs occlusion-aware, viewpoint-based visibility filtering — its docstring does not cross-reference an alternative. If you instead want to filter by absolute distance from a point regardless of occlusion, or by a spatial region, look at the plane- and box-based filtering skills instead.

When Not to Use the Skill

Do not use Filter Point Cloud Using Viewpoint Visibility when:

• You don't know the real camera position – an incorrect viewpoint produces a visibility result that doesn't correspond to any real sensor view
• The point cloud's coordinate frame doesn't match the viewpoint's – e.g. the cloud has been re-centered since capture; transform one to match the other first
• You need every point regardless of occlusion – this Skill explicitly removes occluded and out-of-range points
• visibility_radius can't be sized reliably – if the scene's true extent isn't known, an undersized radius will drop valid points outright
