Filter Image Using Sato Filter

SUMMARY

Filter Image Using Sato Filter applies Sato filter for multi-scale ridge detection.

Sato filter is designed to detect ridges and valleys at multiple scales, useful for detecting fine structures like vessels or fibers. This filter is optimized for general ridge detection and performs well on a variety of biological and industrial images where linear or curved structures need to be enhanced. It's particularly effective for structures that are elongated but may have varying contrast or width.

Use this Skill when you want to detect ridges and fine linear structures at multiple scales.

The Skill

from telekinesis import pupil

ridges = pupil.filter_image_using_sato(
    image=image,
    scale_start=1,
    scale_end=10,
    scale_step=2,
    detect_black_ridges=True,
    border_type="reflect",
    constant_value=0.0,
)

API Reference

Example

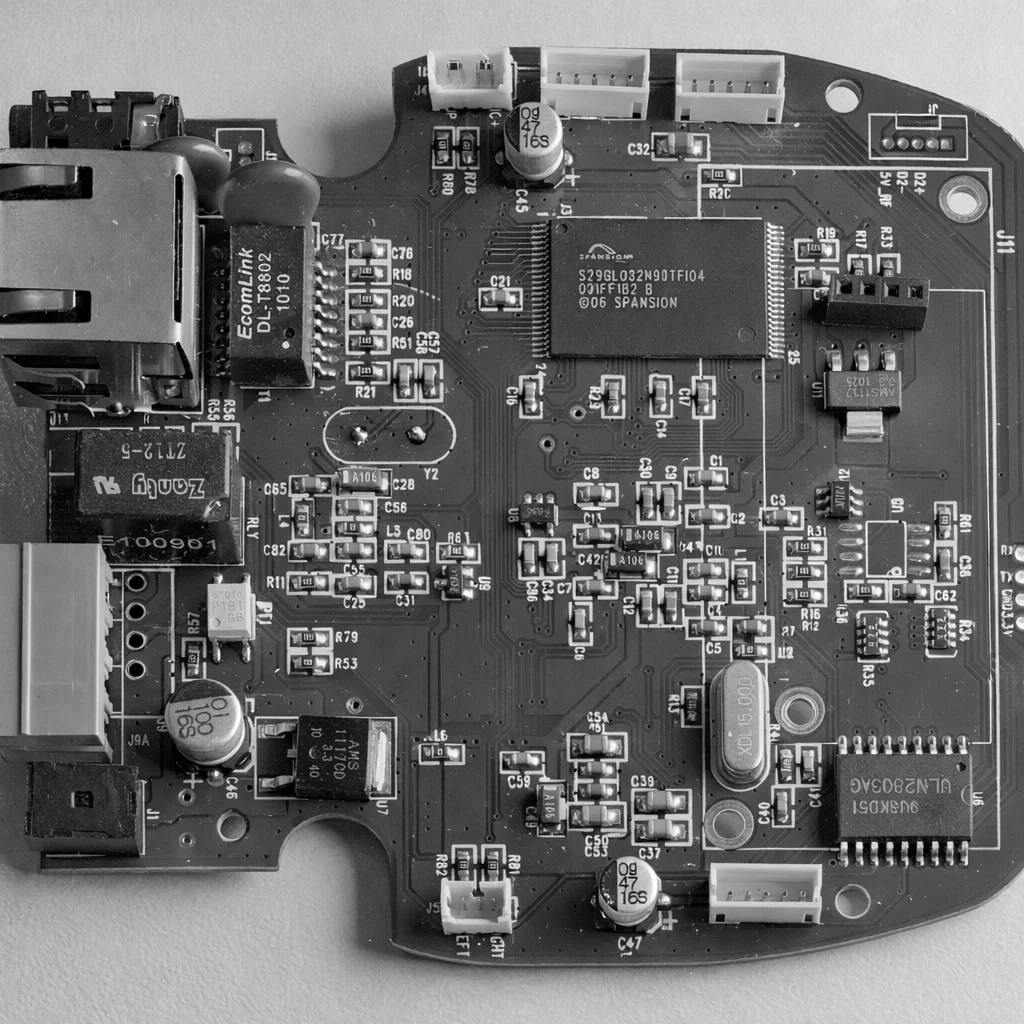

Input Image

Original grayscale image (pcb_top_gray.png, normalized to 0-1 range)

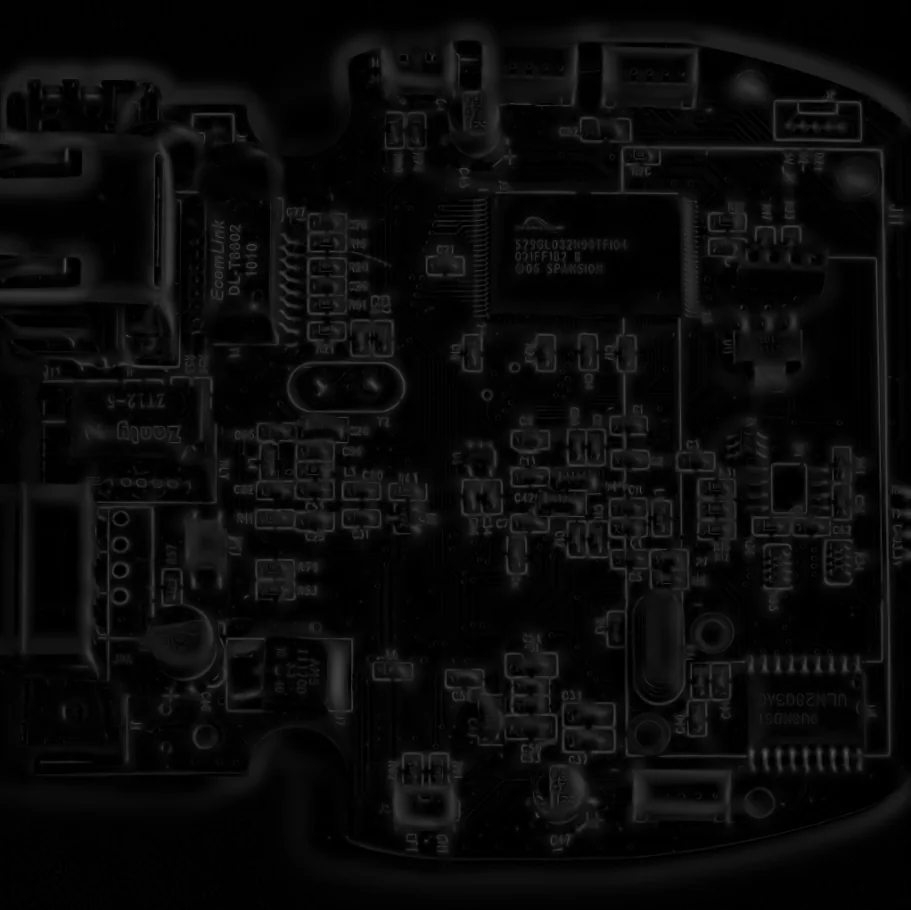

Filtered Image

Sato filter highlighting thin, bright ridge-like PCB structures such as traces and IC pins.

The Code

from telekinesis import pupil
from datatypes import io
import pathlib
from loguru import logger

DATA_DIR = pathlib.Path("path/to/telekinesis-data")

# Load image
filepath = str(DATA_DIR / "images" / "pcb_top_gray.webp")
image = io.load_image(filepath=filepath, as_gray=True)
logger.success(f"Loaded image from {filepath}")

# Apply Sato filter for multi-scale ridge detection
filtered_image = pupil.filter_image_using_sato(
    image=image,
    scale_start=1,
    scale_end=12,
    scale_step=1,
    detect_black_ridges=False,
    border_type="reflect",
    border_value=0.0,
)

# Access results
filtered_image_np = filtered_image.to_numpy()
logger.success("Applied Sato filter. Filtered output image shape: {}", filtered_image_np.shape)

The Explanation of the Code

The code begins by importing the necessary modules: pupil for image processing operations, io for data handling, pathlib for path management, and loguru for logging.

from telekinesis import pupil
from datatypes import io
import pathlib
from loguru import logger

Next, an image is loaded from a .png file using the io.load_image function. The image is loaded in grayscale mode using as_gray=True, which is appropriate for Sato ridge detection that operates on spatial derivatives.

DATA_DIR = pathlib.Path("path/to/telekinesis-data")

# Load the grayscale image
filepath = str(DATA_DIR / "images" / "pcb_top_gray.webp")
image = io.load_image(filepath=filepath, as_gray=True)

The main operation uses the filter_image_using_sato Skill from the pupil module. This Skill applies the Sato filter for multi-scale ridge detection to enhance fine linear structures. The parameters can be tuned to control scale range, ridge polarity, and border handling depending on the characteristics of the input image.

filtered_image = pupil.filter_image_using_sato(
    image=image,
    scale_start=1,
    scale_end=12,
    scale_step=1,
    detect_black_ridges=False,
    border_type="reflect",
    border_value=0.0,
)

Finally, the filtered image is converted to a NumPy array using to_numpy() for further processing, visualization, or downstream tasks.

filtered_image_np = filtered_image.to_numpy()
logger.success(f"Output image shape: {filtered_image_np.shape}")

This operation is particularly useful in robotics and vision pipelines for ridge detection, fiber detection, crack detection, and PCB trace analysis, where enhancing multi-scale linear structures is required.

Running the Example

Runnable examples are available in the Telekinesis examples repository. Follow the README in that repository to set up the environment. Once set up, you can run this specific example with:

cd telekinesis-examples
python examples/pupil_examples.py --example filter_image_using_sato

How to Tune the Parameters

The filter_image_using_sato Skill has 6 parameters that control the multi-scale ridge detection:

scale_start (default: 1):

• The minimum scale (sigma) for structure detection
• Units: Sigma (pixels)
• Increase to skip very thin ridges; Decrease to capture finest linear details
• Typical range: 1–5 (min: 1, max: 5)
• Determines the finest ridge width to detect

scale_end (default: 10):

• The maximum scale (sigma) for structure detection
• Units: Sigma (pixels)
• Increase to detect wider ridges and fibers; Decrease for faster processing
• Typical range: 5–20 (min: 5, max: 20)
• Determines the thickest ridge width to detect

scale_step (default: 2):

• The step size between scales
• Units: Sigma steps
• Increase for faster processing; Decrease for finer scale sampling
• Typical range: 1–5 (min: 1, max: 5)
• Use 2 for efficiency, 1 for maximum precision

detect_black_ridges (default: True):

• Whether to detect dark ridges instead of bright
• Set True for dark ridges on bright background; False for bright ridges on dark background
• Use cases: True for cracks on surfaces, False for traces on dark PCB

border_type (default: "reflect"):

• The padding mode for image borders
• Options: "reflect", "constant", "wrap", "nearest", "mirror"
• Use "reflect" for most cases

border_value (default: 0.0):

• The value used for constant padding mode
• Units: Intensity (0–1 normalized)
• Typical range: 0.0–1.0 (min: 0.0, max: 1.0)
• Only used when border_type="constant"

TIP

Best practice: Set scale_start and scale_end to span the expected range of ridge widths. Use scale_step=2 for efficiency.

Where to Use the Skill in a Pipeline

Filter Using Sato is commonly used in the following pipelines:

• Fiber detection - Detect fibrous structures in materials
• Crack detection - Identify cracks and linear defects
• Ridge enhancement - Enhance ridge patterns in various images
• Biological imaging - Detect fibers and elongated structures
• Industrial inspection - Find linear features or defects

Related skills to build such a pipeline:

• filter_image_using_gaussian_blur: Pre-smooth
• filter_image_using_frangi: Alternative for vessel structures
• filter_image_using_morphological_close: Post-process results

Alternative Skills

Skill	vs. Filter Using Sato
filter_image_using_frangi	Frangi is optimized for vessels. Use Sato for general ridges, Frangi for biological vessels.
filter_image_using_hessian	Hessian is simpler. Use Sato for better ridge detection, Hessian for speed.
filter_image_using_meijering	Meijering is optimized for neurites. Use Sato for general ridges.

When Not to Use the Skill

Do not use Filter Using Sato when:

• You're detecting blob-like structures (Use blob detectors instead)
• You need simple edge detection (Use Sobel or Canny)
• Structures are not ridge-like (Use appropriate filters)
• You need very fast processing (Sato is computationally expensive)
