Capture Depth Image ​

SUMMARY

Capture Depth Image acquires one depth frame from a 3D camera and returns it as a NumPy array of float values in metres. Pair it with a Rerun DepthImage colour map for instant visual inspection of distance information.

Available on: Intel RealSense, Zivid.

The Skill ​

python
depth_image = camera.capture_depth_image()

Example ​

Intel RealSense

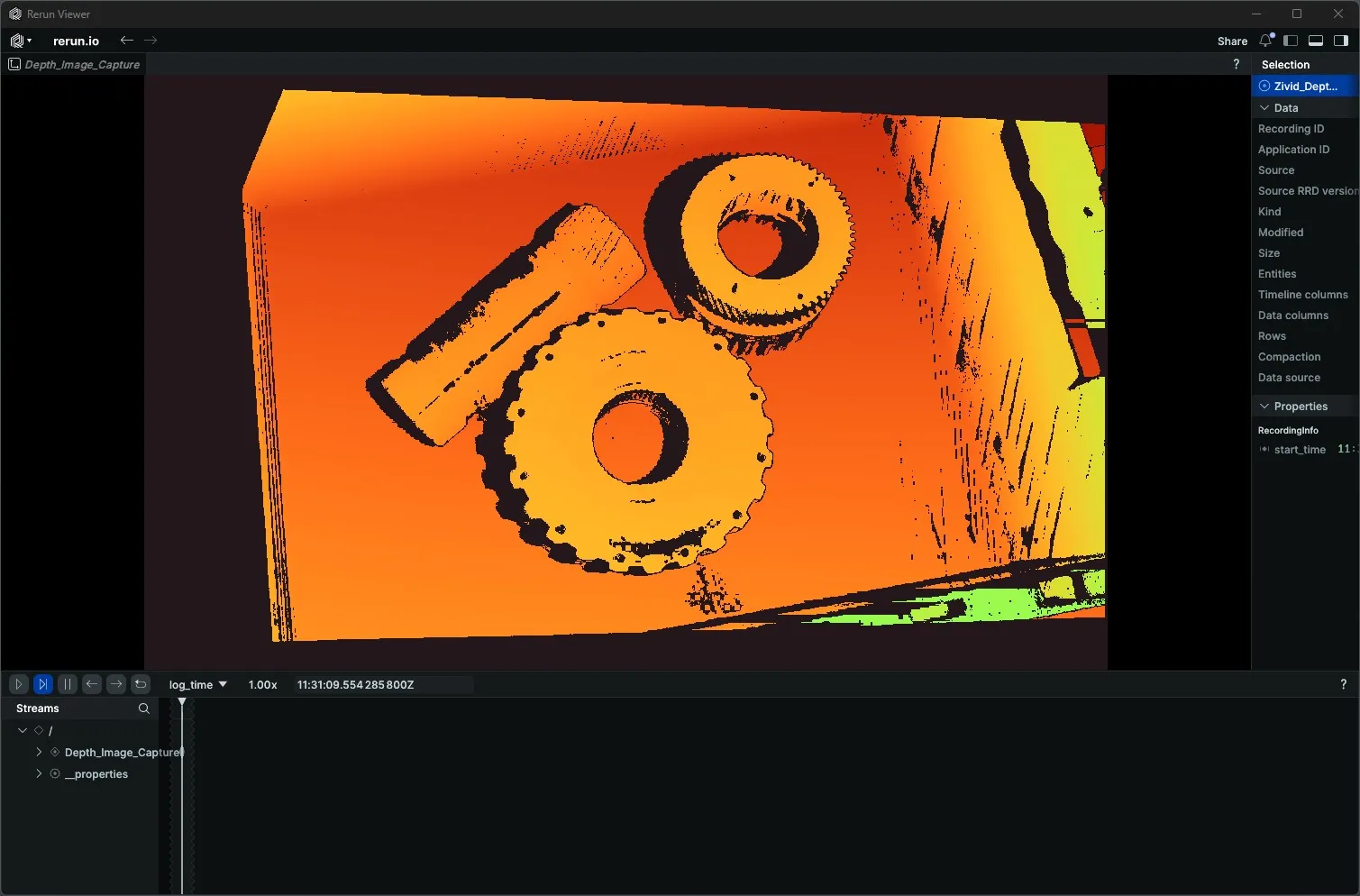

Single depth image capture output

Zivid

Single depth image capture output

The Code ​

python
"""
Connect to a RealSense camera, capture a depth image, and disconnect.

Run from a terminal to avoid issues with Rerun's spawn mode.
"""
from loguru import logger
import rerun as rr

from telekinesis.medulla.cameras import realsense

def main():
    camera = realsense.RealSense(name="my_realsense_camera")

    try:
        rr.init("RealSense_Depth_Image_Example", spawn=True)
        camera.connect()

        depth_image = camera.capture_depth_image()

        rr.log(
            "Depth_Image_Capture",
            rr.DepthImage(
                depth_image,
                meter=1.0, # values are already in metres
                colormap="turbo",
                depth_range=(0.0, 3.0) # 3 metres
            )
        )
    except Exception as e:
        logger.error(
            f"Unable to capture depth image. Caught exception: {type(e).__name__}: {e}"
        )
    finally:
        rr.disconnect()
        camera.disconnect()


if __name__ == "__main__":
    main()
python
"""
Connect to a Zivid camera, capture a depth image, and disconnect.

Run from a terminal to avoid issues with Rerun's spawn mode.
"""
from loguru import logger
import rerun as rr

from telekinesis.medulla.cameras import zivid

def main():
    camera = zivid.Zivid(name="my_zivid_camera")

    try:
        rr.init("Zivid_Depth_Image_Example", spawn=True)
        camera.connect()

        depth_image = camera.capture_depth_image()

        rr.log(
            "Depth_Image_Capture",
            rr.DepthImage(
                depth_image,
                meter=1.0, # values are already in metres
                colormap="turbo",
                depth_range=(0.0, 3.0) # 3 metres
            )
        )
    except Exception as e:
        logger.error(
            f"Unable to capture depth image. Caught exception: {type(e).__name__}: {e}"
        )
    finally:
        rr.disconnect()
        camera.disconnect()

if __name__ == "__main__":
    main()

The Explanation of the Code ​

After connect has initialised the camera, capture_depth_image retrieves one depth image and returns a NumPy array of float values already converted to metres:

python
depth_image = camera.capture_depth_image()

Per-camera behavior:

  • RealSense — activates the depth stream, retrieves one frame, and converts it to metres using the sensor's depth scale.
  • Zivid — performs a 3D capture using the current settings and extracts the Z channel from the point cloud, converting from millimetres to metres. Invalid pixels (no depth) are NaN.

rr.DepthImage renders the raw depth array as a false-colour image in Rerun:

  • meter=1.0 tells Rerun the values are already in metres so no unit conversion is applied.
  • colormap="turbo" maps close distances to blue and far distances to red.
  • depth_range=(0.0, 3.0) clamps the colour scale to the 0–3 metre range, so objects outside that band are clipped rather than compressing the palette.

TIP

Make sure to adjust the depth_range according to your scene.

python
rr.log(
    "Depth_Image_Capture",
    rr.DepthImage(depth_image, meter=1.0, colormap="turbo", depth_range=(0.0, 3.0)),
)

The disconnect call lives in a finally block so the camera resources are released regardless of whether the capture succeeded.

Running the Example ​

Change to the respective camera examples folder in telekinesis-examples and run

bash
python capture_depth_image.py

A Rerun viewer opens automatically. The depth image appears under Depth_Image_Capture with the turbo colour map applied.

Where to Use the Skill ​

  • Reach and clearance checks — measure object-to-camera distances before grasp planning.
  • Workspace mapping — capture a one-shot depth snapshot of the robot cell.
  • Sanity checks during calibration — confirm depth alignment without running a continuous stream.
