Segment Image Using LAB

SUMMARY

Segment Image Using LAB performs LAB color space segmentation.

LAB color space is perceptually uniform, meaning that equal distances in LAB space correspond to equal perceived color differences. This makes LAB segmentation more intuitive for human-defined color ranges and better for applications requiring perceptual color matching.

Use this Skill when you want to segment objects based on perceptually uniform color differences.

The Skill

from telekinesis import cornea

result = cornea.segment_image_using_lab(
    image=image,
    lower_bound=(0, 0, 0),
    upper_bound=(255, 255, 255))

API Reference

Example

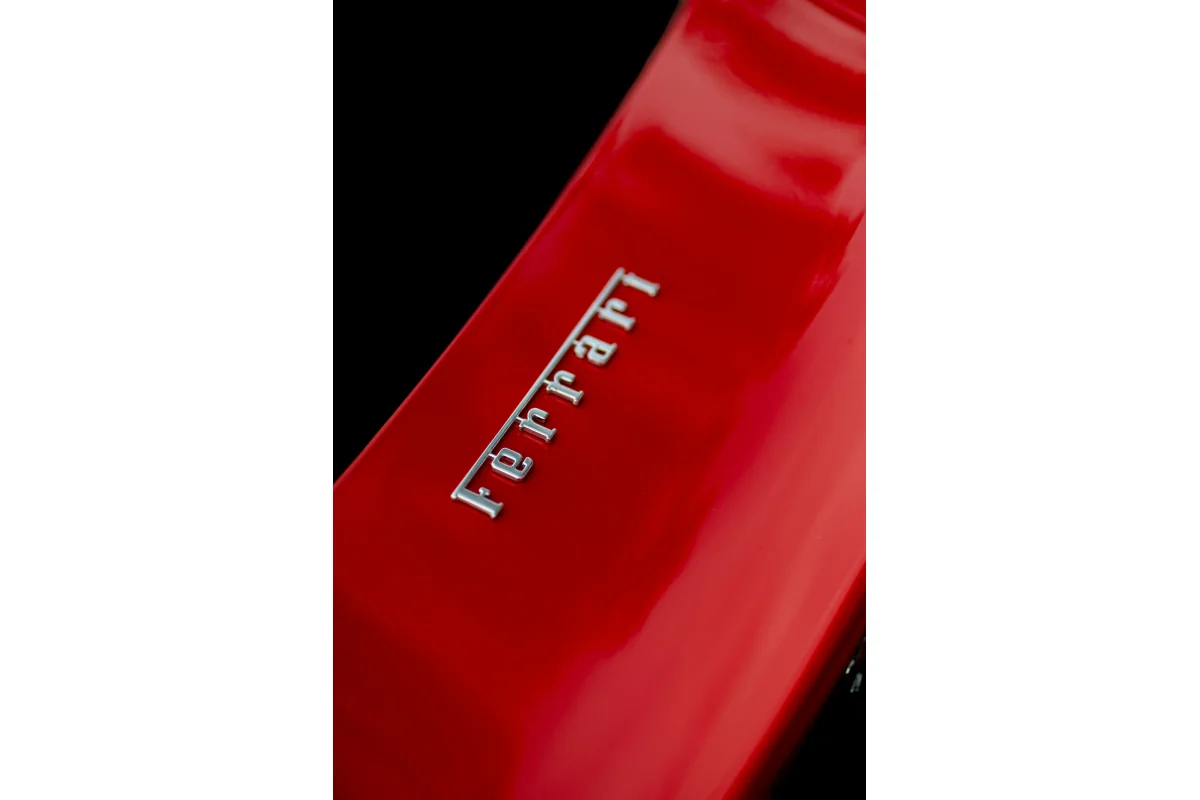

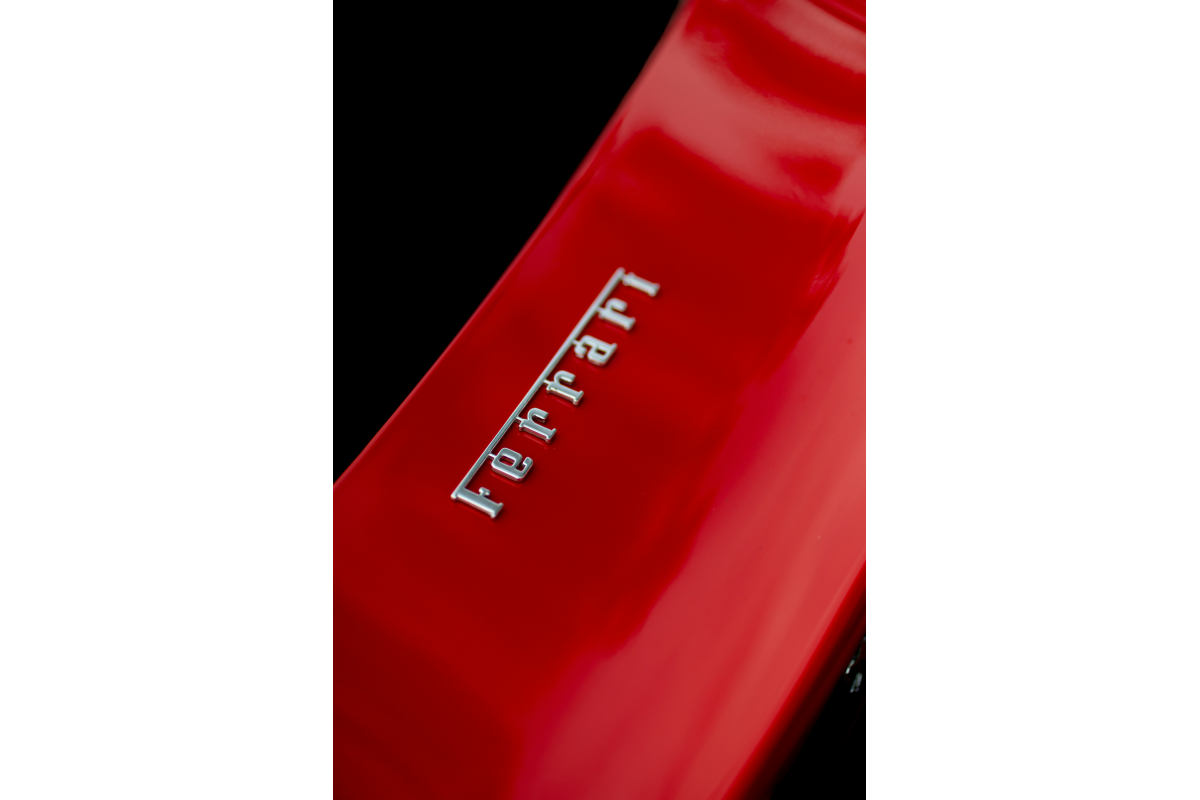

Input Image

Original image for LAB color segmentation

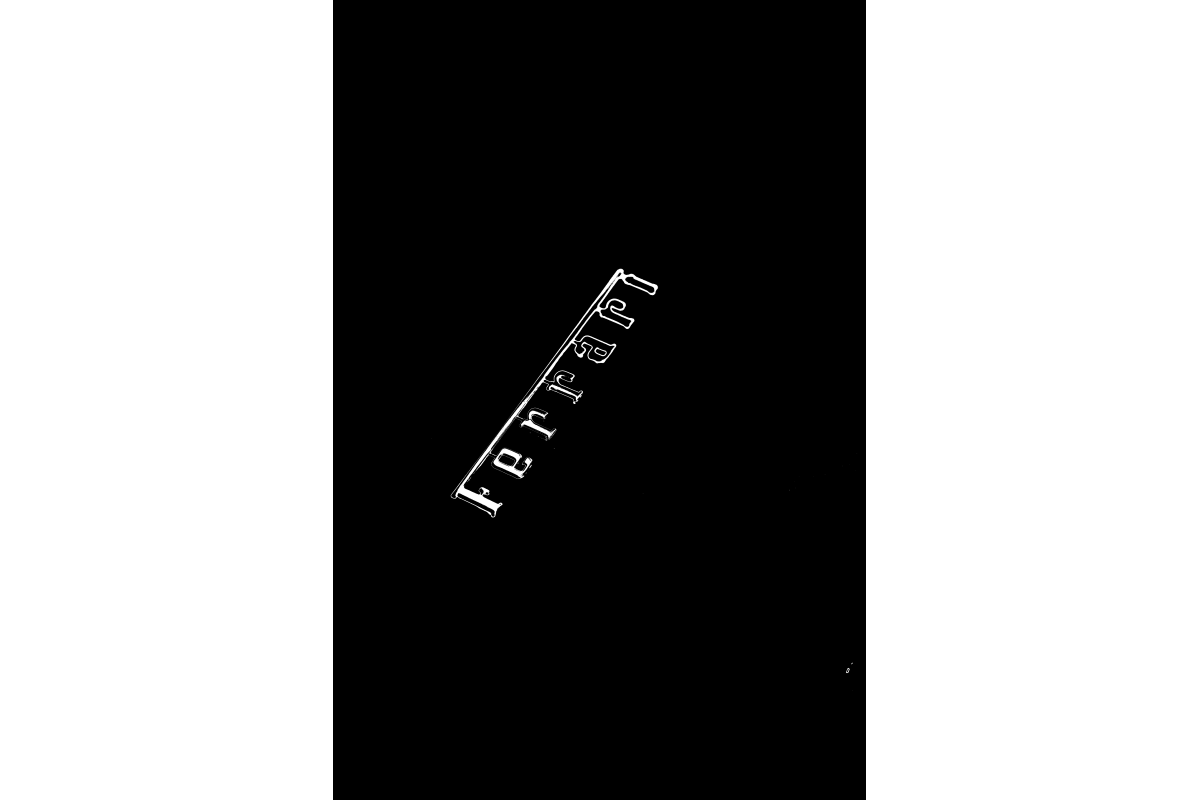

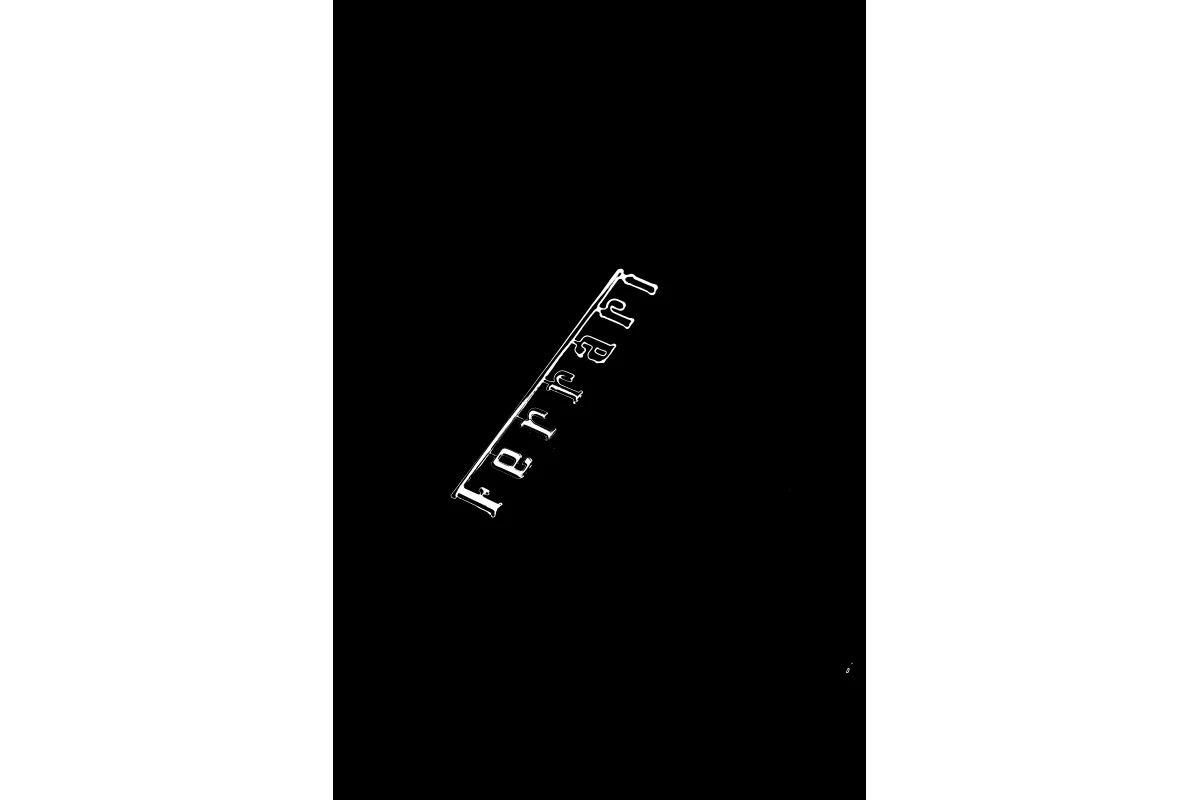

Output Image

Segmented image by LAB color range

The Code

import pathlib

from telekinesis import cornea
from datatypes import io

DATA_DIR = pathlib.Path("path/to/telekinesis-data")

# Load image
filepath = str(DATA_DIR / "images" / "car_painting.jpg")
image = io.load_image(filepath=filepath)

# Perform LAB segmentation
result = cornea.segment_image_using_lab(
    image=image,
    lower_bound=(120, 50, 50),
    upper_bound=(180, 255, 255),
)

# Access results
annotation = result["annotation"].to_dict()
mask = annotation['labeled_mask']

The Explanation of the Code

LAB segmentation converts the image to LAB color space and identifies pixels within a specified LAB range. LAB (L*a*b*) is a perceptually uniform color space.

Understanding L*, A*, B* in Code:

In the code, the bounds are specified as (L, A, B) tuples where all values are scaled to 0-255:

Channel	Name	Original Range	Scaled Range	Description
L*	Lightness	0-100	0-255	Black (0) to White (255)
A*	Green-Red	-128 to 127	0-255	Green (0) to Red (255), neutral at 128
B*	Blue-Yellow	-128 to 127	0-255	Blue (0) to Yellow (255), neutral at 128

The code begins by importing the required modules and loading an image:

import pathlib

from telekinesis import cornea
from datatypes import io

DATA_DIR = pathlib.Path("path/to/telekinesis-data")
filepath = str(DATA_DIR / "images" / "car_painting.jpg")
image = io.load_image(filepath=filepath)

The LAB segmentation parameters are configured:

result = cornea.segment_image_using_lab(
    image=image,
    lower_bound=(120, 50, 50),
    upper_bound=(180, 255, 255),
)

The function returns a dictionary containing an annotation object in COCO panoptic format. Extract the mask as follows:

annotation = result["annotation"].to_dict()
mask = annotation['labeled_mask']

Running the Example

Runnable examples are available in the Telekinesis examples repository. Follow the README in that repository to set up the environment. Once set up, you can run this specific example with:

cd telekinesis-examples
python examples/cornea_examples.py --example segment_image_using_lab

How to Tune the Parameters

The segment_image_using_lab Skill has 2 parameters:

lower_bound (default: (0, 0, 0)):

• Lower bound for LAB range as a tuple (L, A, B)
• Units: All channels scaled to 0-255
• L (Lightness): Lower values = darker pixels included
• A (Green-Red): Lower values = more green tones included
• B (Blue-Yellow): Lower values = more blue tones included

upper_bound (default: (255, 255, 255)):

• Upper bound for LAB range as a tuple (L, A, B)
• Units: All channels scaled to 0-255
• L (Lightness): Higher values = brighter pixels included
• A (Green-Red): Higher values = more red tones included
• B (Blue-Yellow): Higher values = more yellow tones included

TIP

Best practice: Use a color picker that provides LAB values, or convert RGB/HSV to LAB to determine appropriate bounds. Remember that A=128 and B=128 represent neutral (gray) colors.

Where to Use the Skill in a Pipeline

Segment Image Using LAB is commonly used in the following pipelines:

• Perceptual color matching - When color differences need to match human perception
• Quality control - Color inspection requiring perceptual uniformity
• Material classification - Color-based sorting with perceptual consistency
• Design applications - Color-based segmentation matching human color perception

A typical pipeline for perceptual color matching looks as follows:

from telekinesis import cornea
from datatypes import io

# 1. Load the image
image = io.load_image(filepath=...)

# 2. Segment Image Using LAB (perceptually uniform)
result = cornea.segment_image_using_lab(image=image, ...)

# 3. Process segmented regions
annotation = result["annotation"].to_dict()
mask = annotation['labeled_mask']

Related skills to build such a pipeline:

• load_image: Load images from disk
• segment_image_using_hsv: Alternative for lighting robustness

Alternative Skills

Skill	vs. Segment Image Using LAB
segment_image_using_hsv	HSV is more robust to lighting. Use HSV for varying lighting, LAB for perceptual uniformity.
segment_image_using_rgb	RGB is simpler. Use RGB for direct pixel values, LAB for perceptual color matching.

When Not to Use the Skill

Do not use Segment Image Using LAB when:

• You need maximum lighting robustness (Use HSV instead)
• Color is not a distinguishing feature (Consider other segmentation methods)

TIP

LAB color space is particularly useful when color selection needs to match human perception, such as in design or quality control applications.
