Filter Image Using Bilateral

SUMMARY

Filter Image Using Bilateral applies a bilateral filter to reduce noise while preserving edges.

Bilateral filtering is effective for noise reduction while maintaining edge sharpness. It considers both spatial proximity and color similarity, making it ideal for smoothing images without blurring important boundaries. This filter is commonly used in photography enhancement, medical imaging preprocessing, and computer vision pipelines where edge preservation is critical.

Use this Skill when you want to reduce noise while preserving sharp edges and fine details.

The Skill

from telekinesis import pupil

filtered_image = pupil.filter_image_using_bilateral(
    image=image,
    neighborhood_diameter=9,
    spatial_sigma=75.0,
    color_intensity_sigma=75.0,
    border_type="default",
)

API Reference

Example

Input Image

Original image with noise artifacts

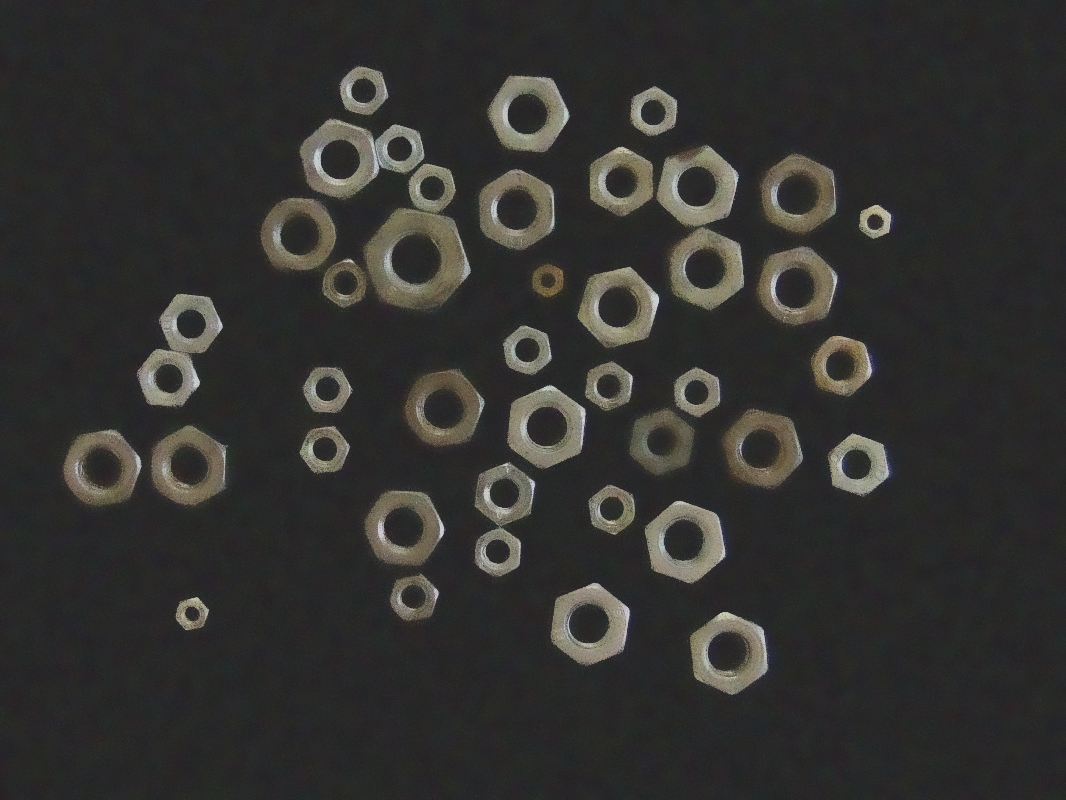

Output Image

Filtered image with neighborhood_diameter=9, spatial_sigma=75.0, color_intensity_sigma=75.0 - noise removed while edges remain sharp

The Code

from telekinesis import pupil
from datatypes import io, datatypes

import pathlib
from loguru import logger

DATA_DIR = pathlib.Path("path/to/telekinesis-data")

# Load image
filepath = str(DATA_DIR / "images" / "nuts_scattered_noised.jpg")
image = io.load_image(filepath=filepath)
logger.success(f"Loaded image with shape {image.to_numpy().shape}")

# Apply bilateral filter
filtered_image = pupil.filter_image_using_bilateral(
    image=image,
    neighborhood_diameter=19,
    spatial_sigma=75.0,
    color_intensity_sigma=100.0,
    border_type="default",
)
logger.success(f"Applied bilateral filter with filtered image shape as {filtered_image.to_numpy().shape}")

The Explanation of the Code

The bilateral filter implementation follows a standard image processing workflow with proper parameter configuration. The code first imports the required modules. These imports provide access to the Pupil SDK, type-safe datatypes, numerical operations, and logging functionality.

from telekinesis import pupil
from datatypes import datatypes

# Optional
from loguru import logger

A data directory is set and the input image is then loaded from disk using io.load_image function. A log message confirms successful loading and reports the image dimensions. The input image may be either grayscale (H, W) or color (H, W, C). The bilateral filter supports both formats.

DATA_DIR = pathlib.Path("path/to/telekinesis-data")

# Load image
filepath = str(DATA_DIR / "images" / "nuts_scattered_noised.jpg")
image = io.load_image(filepath=filepath)

Next, the bilateral filter parameters are configured. The bilateral filter uses a dual-weighting scheme that considers both spatial proximity and color similarity to preserve edges while reducing noise.

neighborhood_diameter controls the size of the pixel neighborhood used for filtering. A larger diameter increases the smoothing area but also increases computation time.

spatial_sigma determines how spatial distance influences smoothing. Higher values allow pixels farther away to contribute more to the filtered result, creating smoother regions.

color_intensity_sigma controls how intensity differences affect filtering. Higher values allow pixels with larger intensity differences to be averaged together, while lower values preserve sharp intensity transitions (edges).

border_type specifies how image borders are handled during filtering when the neighborhood extends beyond the image boundaries.

Finally, the bilateral filter is applied using the filter_image_using_bilateral Skill. The original image remains unchanged, and a new filtered image is returned as output.

filtered_image = pupil.filter_image_using_bilateral(
    image=image,
    neighborhood_diameter=19,
    spatial_sigma=75.0,
    color_intensity_sigma=100.0,
    border_type="default",
)
logger.success(f"Applied bilateral filter with filtered image shape as {filtered_image.to_numpy().shape}")

This operation smooths the image while preserving edges, making it useful in preprocessing pipelines for object detection, segmentation, and quality enhancement.

Running the Example

Runnable examples are available in the Telekinesis examples repository. Follow the README in that repository to set up the environment. Once set up, you can run this specific example with:

cd telekinesis-examples
python examples/pupil_examples.py --example filter_image_using_bilateral

How to Tune the Parameters

The filter_image_using_bilateral Skill has 4 parameters that control the noise reduction and edge preservation behavior:

neighborhood_diameter (default: 9):

• The size of the kernel for spatial filtering. Must be odd.
• Units: Pixels
• Increase to expand the spatial smoothing area, creating more smoothing but slower processing
• Decrease for faster processing but less effective smoothing
• Typical range: 3-15
• Use 3-5 for small images or subtle smoothing, 5-9 for medium images with moderate noise, 9-15 for large images or heavy noise

spatial_sigma (default: 75.0):

• The spatial standard deviation in pixels
• Units: Pixels (standard deviation)
• Increase to make the filter consider pixels farther away, creating more smoothing across larger regions
• Decrease to focus smoothing on nearby pixels only, preserving more local detail
• Typical range: 10.0-150.0
• Use 10.0-50.0 for fine detail preservation, 50.0-100.0 for balanced smoothing, 100.0-150.0 for strong smoothing

color_intensity_sigma (default: 75.0):

• The color/intensity standard deviation
• Units: Intensity levels (0-255 scale)
• Increase to allow larger color differences to be smoothed together, merging more regions
• Decrease to preserve more color boundaries and prevent blending across edges
• Typical range: 10.0-150.0
• Use 10.0-50.0 for strict color preservation and sharp edges, 50.0-100.0 for balanced edge preservation, 100.0-150.0 for more aggressive color blending

TIP

Best practice: Start with balanced parameters (neighborhood_diameter=9, spatial_sigma=75.0, color_intensity_sigma=75.0) and adjust based on results. If edges are being blurred, decrease color_intensity_sigma. If noise remains, increase spatial_sigma or neighborhood_diameter.

border_type (default: "default"):

• The border handling type for pixels near image edges
• Options: "default", "constant", "replicate", "reflect", "wrap"
• "default" uses the library's default behavior
• "constant" pads with zeros, "replicate" repeats edge pixels, "reflect" mirrors the image, "wrap" wraps around
• Use "default" or "reflect" for most cases, "constant" when you want black borders

Where to Use the Skill in a Pipeline

Filter Using Bilateral is commonly used in the following pipelines:

• Preprocessing for object detection - Remove noise while preserving object boundaries
• Image quality enhancement - Improve visual quality for display or analysis
• Medical imaging - Denoise medical scans while maintaining diagnostic features
• Depth map refinement - Smooth depth data while preserving depth discontinuities at object boundaries
• Photography enhancement - Reduce noise in low-light photos while keeping details sharp

A typical pipeline for preprocessing images for segmentation looks as follows:

# Example pipeline using bilateral filtering (parameters omitted).

from telekinesis import pupil
from datatypes import io

# 1. Load the image
image = io.load_image(filepath=...)

# 2. Apply bilateral filter to remove noise while preserving edges
filtered_image = pupil.filter_image_using_bilateral(image=image, ...)

# 3. Remove small noise after filtering
opened_image = pupil.filter_image_using_morphological_close(image=filtered_image, ...)

# 4. Apply segmentation or further processing

Related skills to build such a pipeline:

• load_image: Load images from disk for processing
• filter_image_using_gaussian_blur: Alternative smoothing filter when edge preservation is less critical
• filter_image_using_morphological_open: Remove small noise after filtering for cleaner segmentation

Alternative Skills

Skill	vs. Filter Using Bilateral
filter_image_using_gaussian_blur	Gaussian blur is faster but doesn't preserve edges as well. Use bilateral when edges are important, gaussian for general smoothing or when speed is critical.
filter_image_using_median_blur	Median blur excels at removing salt-and-pepper noise but is slower and doesn't smooth as naturally. Use median for impulse noise, bilateral for general noise with edge preservation.
filter_image_using_box	Box filter is the fastest but creates blocky artifacts. Use box filter for quick smoothing when quality isn't critical, bilateral when quality matters.

When Not to Use the Skill

Do not use Filter Using Bilateral when:

• You need real-time processing on large images (Use faster filters like Gaussian blur or box filter instead)
• You want to detect edges rather than preserve them (Use edge detection filters like Sobel, Scharr, or Laplacian)
• You're working with binary or heavily quantized images (Use morphological operations instead)
• You specifically need to remove salt-and-pepper noise (Use median blur which is more effective for this specific noise type)

WARNING

Bilateral filtering is computationally expensive compared to other smoothing filters. For very large images or real-time applications, consider using Gaussian blur or resizing the image before filtering.
