Segment Image Using HSV

SUMMARY

Segment Image Using HSV performs HSV color space segmentation.

HSV (Hue, Saturation, Value) color segmentation is more robust to lighting variations than RGB segmentation. By separating color information (hue, saturation) from brightness (value), HSV allows for more consistent color-based segmentation under different lighting conditions.

Use this Skill when you want to segment objects based on color while being robust to lighting changes.

The Skill

from telekinesis import cornea

result = cornea.segment_image_using_hsv(
    image=image,
    lower_bound=(0, 0, 0),
    upper_bound=(180, 255, 255),
)

API Reference

Example

Input Image

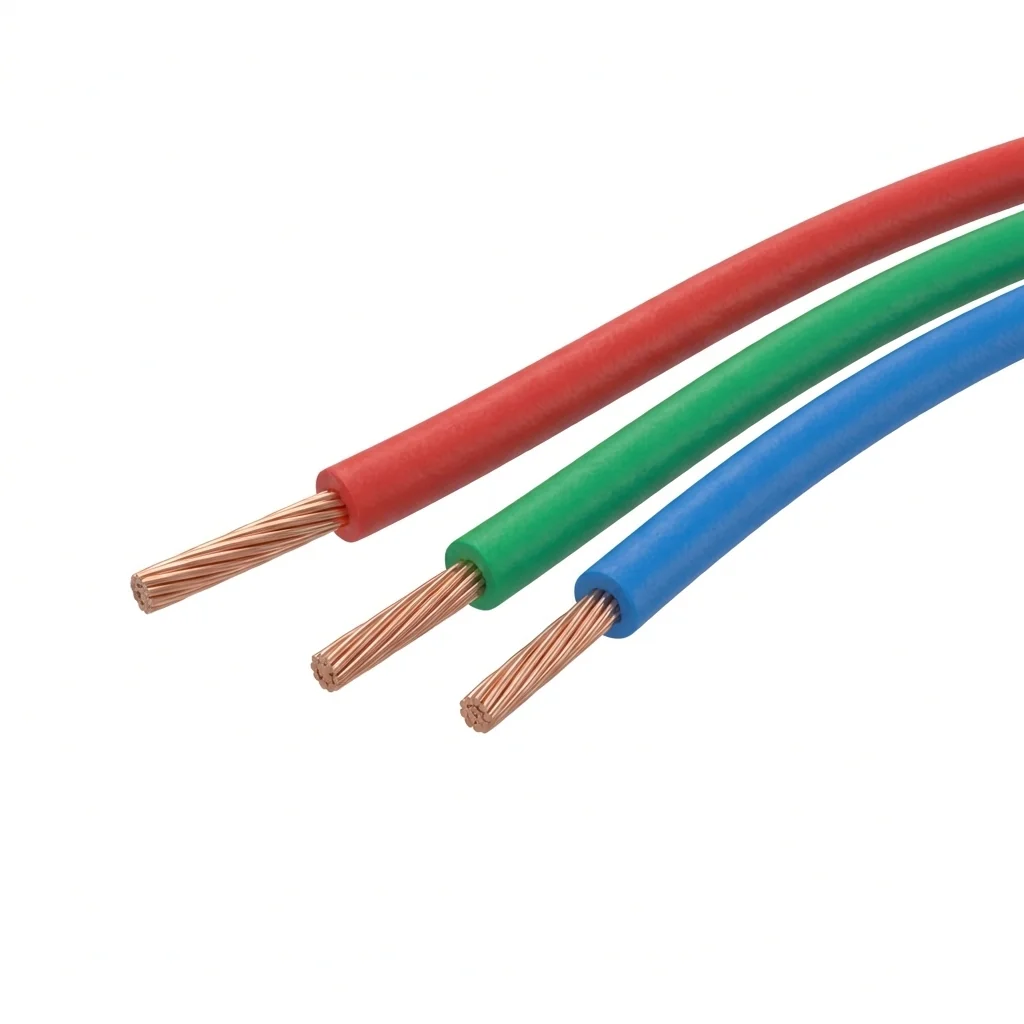

Original image for HSV color segmentation

Output Image

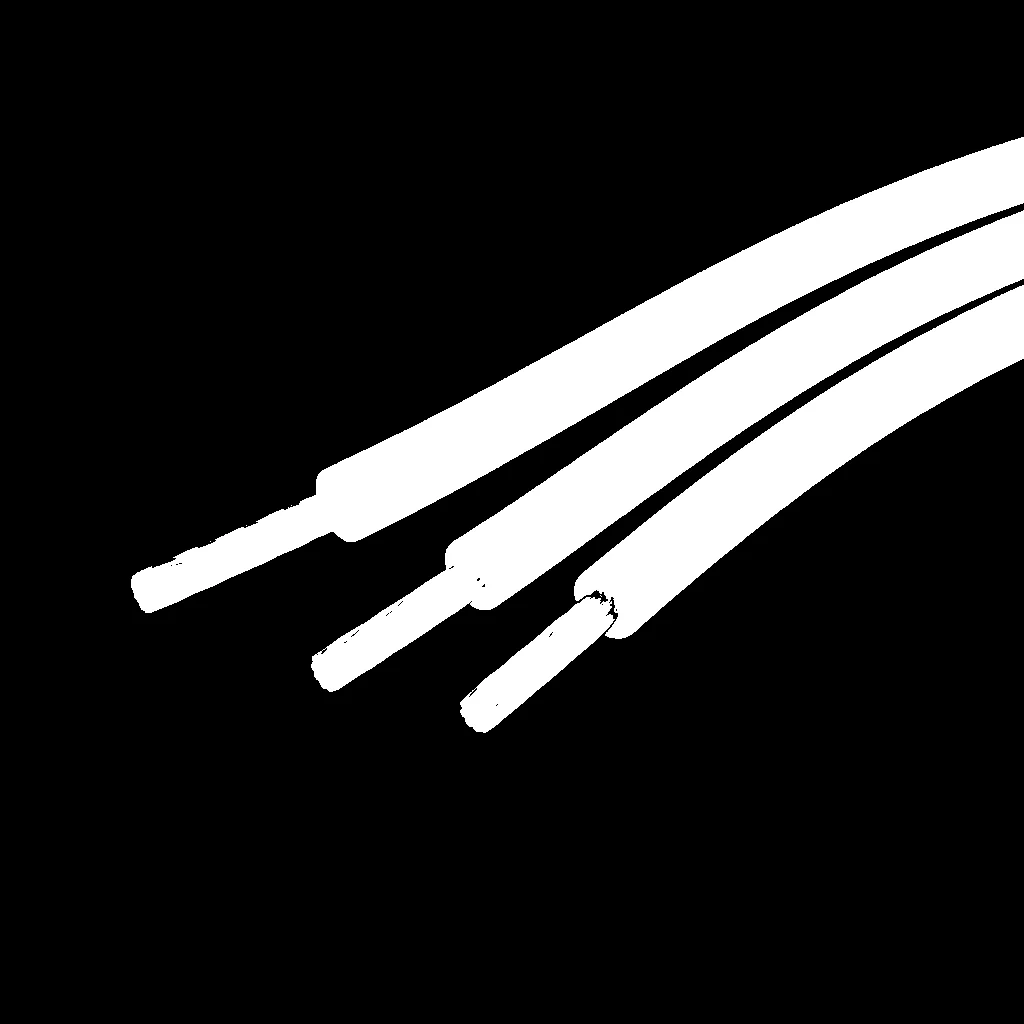

Segmented image by HSV color range

The Code

import pathlib

from telekinesis import cornea
from datatypes import io

DATA_DIR = pathlib.Path("path/to/telekinesis-data")

# Load image
filepath = str(DATA_DIR / "images" / "wires_rgb.png")
image = io.load_image(filepath=filepath)

# Perform HSV segmentation
result = cornea.segment_image_using_hsv(
    image=image,
    lower_bound=(0, 50, 50),
    upper_bound=(180, 255, 255),
)

# Access results
annotation = result["annotation"].to_dict()
mask = annotation['labeled_mask']

The Explanation of the Code

HSV segmentation converts the image to HSV color space and identifies pixels within a specified HSV range. This method is more robust to lighting variations because it separates color (hue, saturation) from brightness (value).

The code begins by importing the required modules and loading an image:

import pathlib

from telekinesis import cornea
from datatypes import io

DATA_DIR = pathlib.Path("path/to/telekinesis-data")
filepath = str(DATA_DIR / "images" / "wires_rgb.png")
image = io.load_image(filepath=filepath)

The HSV segmentation parameters are configured:

• lower_bound and upper_bound define the HSV color range (H, S, V) where:
  • H (Hue): 0-180
  • S (Saturation): 0-255
  • V (Value/Brightness): 0-255

result = cornea.segment_image_using_hsv(
    image=image,
    lower_bound=(0, 50, 50),
    upper_bound=(180, 255, 255),
)

The function returns a dictionary containing an annotation object in COCO panoptic format. Extract the mask as follows:

annotation = result["annotation"].to_dict()
mask = annotation['labeled_mask']

Running the Example

Runnable examples are available in the Telekinesis examples repository. Follow the README in that repository to set up the environment. Once set up, you can run this specific example with:

cd telekinesis-examples
python examples/cornea_examples.py --example segment_image_using_hsv

How to Tune the Parameters

The segment_image_using_hsv Skill has 2 parameters:

lower_bound (default: (0, 0, 0)):

• Lower bound for HSV range as a tuple (H, S, V)
• Units: H: 0-180, S: 0-255, V: 0-255
• Decrease to include darker/less saturated colors
• Increase to exclude darker/less saturated colors

upper_bound (default: (180, 255, 255)):

• Upper bound for HSV range as a tuple (H, S, V)
• Units: H: 0-180, S: 0-255, V: 0-255
• Increase to include brighter/more saturated colors
• Decrease to exclude brighter/more saturated colors

TIP

Best practice: For robust color detection, set a wide range for V (value) to handle lighting variations, while keeping H (hue) and S (saturation) ranges tight around your target color.

Where to Use the Skill in a Pipeline

Segment Image Using HSV is commonly used in the following pipelines:

• Robust color-based object detection - When lighting conditions vary
• Outdoor robotics - Color segmentation under natural lighting
• Quality control - Color inspection under varying illumination
• Material sorting - Color-based sorting with changing lighting

A typical pipeline for robust color detection looks as follows:

from telekinesis import cornea
from datatypes import io

# 1. Load the image
image = io.load_image(filepath=...)

# 2. Segment Image Using HSV (robust to lighting)
result = cornea.segment_image_using_hsv(image=image, ...)

# 3. Process segmented regions
annotation = result["annotation"].to_dict()
mask = annotation['labeled_mask']

Related skills to build such a pipeline:

• load_image: Load images from disk
• segment_image_using_rgb: Alternative for controlled lighting

Alternative Skills

Skill	vs. Segment Image Using HSV
segment_image_using_rgb	RGB is simpler but sensitive to lighting. Use RGB for controlled lighting, HSV for varying conditions.
segment_image_using_lab	LAB is perceptually uniform. Use LAB for intuitive color selection, HSV for lighting robustness.

When Not to Use the Skill

Do not use Segment Image Using HSV when:

• You have controlled, consistent lighting (RGB may be simpler)
• Color is not a distinguishing feature (Consider other segmentation methods)

TIP

HSV is the most commonly used color space for color-based segmentation in robotics due to its robustness to lighting variations.
