Calculate Image Centroid

SUMMARY

Calculate Image Centroid calculates the centroid of non-zero pixels in a binary mask.

The centroid (cx, cy) is the center of mass of all non-zero pixels. Returns a Position2D with the centroid coordinates. Raises ValueError if the mask has no non-zero pixels. Useful when you need only the center point without PCA visualization.

Use this Skill when you want to get the center of mass of a binary mask.

The Skill

from telekinesis import pupil

centroid = pupil.calculate_image_centroid(mask=mask)

API Reference

Example

Input

Centroid is the geometric center of non-zero pixels.

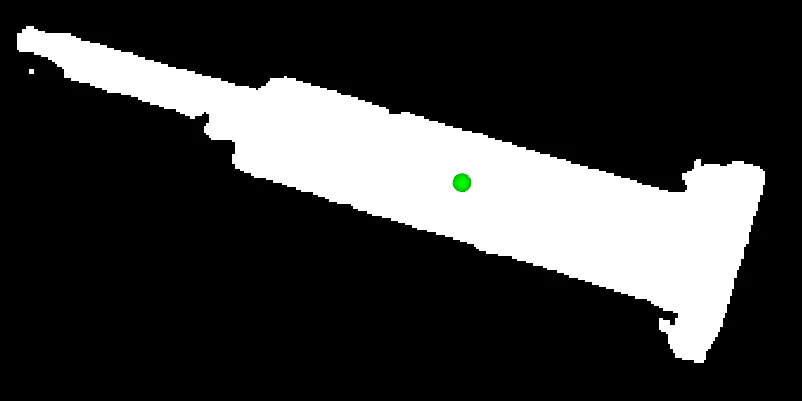

Output

Centroid is the geometric center of non-zero pixels.

The Code

from telekinesis import pupil
from datatypes import io
import pathlib
from loguru import logger

DATA_DIR = pathlib.Path("path/to/telekinesis-data")

# Load binary mask
filepath = str(DATA_DIR / "images" / "metal_part_mask.webp")
mask = io.load_image(filepath=filepath, as_binary=True, binary_method="fixed")
logger.success(f"Loaded mask from {filepath}")

# Calculate centroid of non-zero pixels
centroid = pupil.calculate_image_centroid(mask=mask)

# Access results
centroid_pos = centroid.to_numpy().reshape(-1, 2)
logger.success("Computed centroid. Position: ({}, {})", centroid_pos[0, 0], centroid_pos[0, 1])

The Explanation of the Code

The code begins by importing the necessary modules: pupil for image processing operations, io for data handling, pathlib for path management, and loguru for logging.

from telekinesis import pupil
from datatypes import io
import pathlib
from loguru import logger

Next, a binary mask is loaded from a .png file using the io.load_image function with as_binary=True. The mask should have non-zero values indicating the region of interest.

DATA_DIR = pathlib.Path("path/to/telekinesis-data")

# Load binary mask
filepath = str(DATA_DIR / "images" / "metal_part_mask.webp")
mask = io.load_image(filepath=filepath, as_binary=True, binary_method="fixed")

The main operation uses the calculate_image_centroid Skill from the pupil module. This Skill computes the centroid (center of mass) of all non-zero pixels in the mask. The result is a Position2D object with coordinates (cx, cy).

centroid = pupil.calculate_image_centroid(mask=mask)
logger.success("Centroid: {}", centroid)

Finally, the centroid coordinates are extracted for further use. If the mask has no non-zero pixels, the Skill raises ValueError.

centroid_pos = centroid.to_numpy().reshape(-1, 2)
logger.success("Computed centroid. Position: ({}, {})", centroid_pos[0, 0], centroid_pos[0, 1])

This operation is particularly useful in robotics and vision pipelines for object localization, alignment, picking, and tracking, where the center of mass of a binary mask is required.

Running the Example

Runnable examples are available in the Telekinesis examples repository. Follow the README in that repository to set up the environment. Once set up, you can run this specific example with:

cd telekinesis-examples
python examples/pupil_examples.py --example calculate_image_centroid

How to Tune the Parameters

The calculate_image_centroid Skill has no tunable parameters. It requires a binary mask with at least one non-zero pixel.

TIP

Best practice: Ensure the mask contains at least one non-zero pixel before calling. If the mask may be empty, check the sum of pixel values first. Use calculate_image_pca when you need both the centroid and principal axis visualization.

Where to Use the Skill in a Pipeline

Calculate Image Centroid is commonly used in the following pipelines:

• Object localization - Get center of detected region
• Alignment - Center objects for further processing
• Picking - Compute grasp center from segmentation mask
• Tracking - Track centroid of moving object

Related skills to build such a pipeline:

• calculate_image_pca: Get centroid plus visualization and principal axis
• align_image_circle_center: Align by circle centers
• crop_image_using_bounding_boxes: Crop around centroid

Alternative Skills

Skill	vs. Calculate Image Centroid
calculate_image_pca	Use when you need centroid plus principal axis visualization and orientation.

When Not to Use the Skill

Do not use Calculate Image Centroid when:

• You need principal axis or orientation (Use calculate_image_pca instead)
• The mask has no foreground pixels (Will raise ValueError)
• You're working with grayscale (Use binary mask; threshold first if needed)
• The mask has no non-zero pixels (Will raise ValueError; ensure at least one foreground pixel before calling)
