Bin Picking: Flange 4 Holes
SUMMARY
Physics-simulated, photorealistic RGB renders of metallic 4-hole flanges in industrial KLT/Euronorm bins, generated with Extreme Domain Randomization (EDR) for sim-to-real transfer, with pixel-accurate instance masks. Access this dataset on Kaggle: Bin Picking Flange 4 Holes

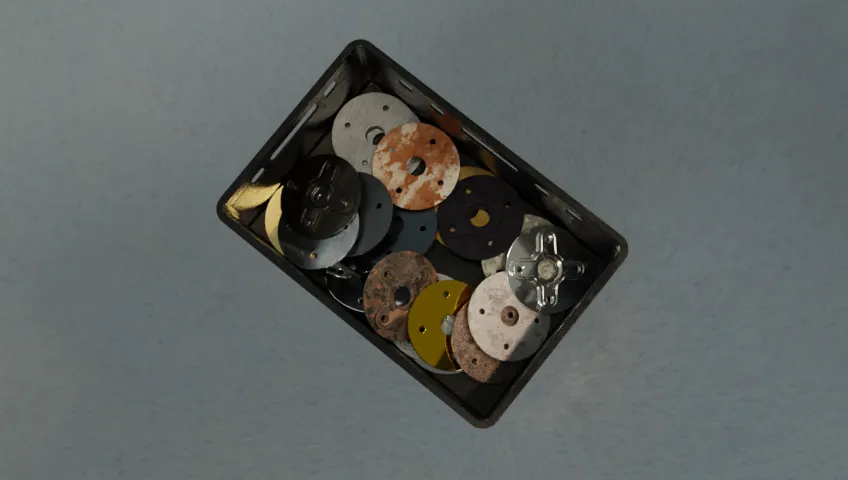

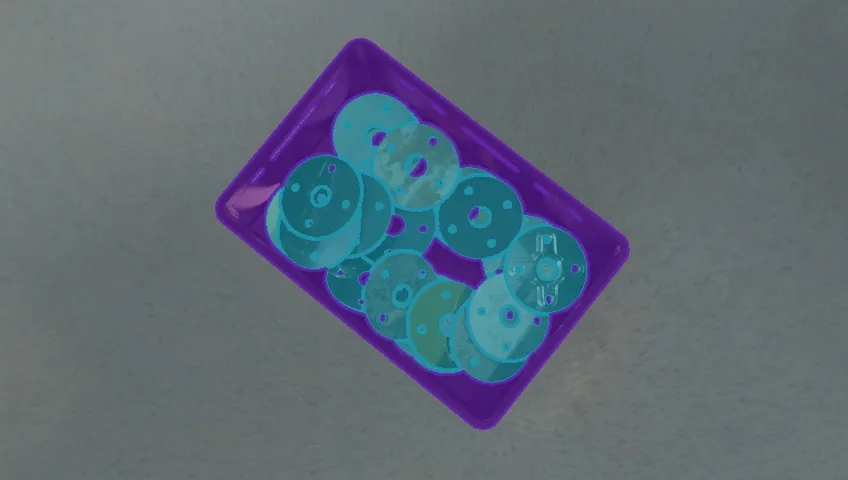

Samples
About the Dataset
A synthetic dataset for instance segmentation of 4-hole mechanical flanges in cluttered industrial bins, targeting applications in bin-picking, sim-to-real transfer, and amodal/occlusion-heavy segmentation.
Each scene is constructed by spawning 20–30 flange instances above a randomly selected industrial container and running a rigid-body physics simulation to settle them into a natural, self-occluding pile. The settled scene is then rendered from 4 randomized camera poses under Extreme Domain Randomization (EDR) — aggressive variation of lighting, materials, and backgrounds — yielding photorealistic RGB images with per-instance segmentation masks that transfer well from simulation to real-world inference.
Specifications
| Kaggle link | Bin Picking Flange 4 Holes |
| Total images | 9,000 |
| Train-Test-Val Split (percentage) | 70% – 10% – 20% |
| Views per scene | 4 |
| Image resolution | 848 × 480 |
| Image format | PNG (8-bit sRGB) |
| Annotation format | COCO JSON, instance masks as encoded RLE |
| Object classes | 1 (flange_4_holes, category_id=8, supercategory=part) |
| Container classes (background) | 1 (bin, category_id=1, supercategory=container) |
| Instances per scene | 20 – 30 (uniform) |
| License | CC BY-NC-SA 4.0 |
